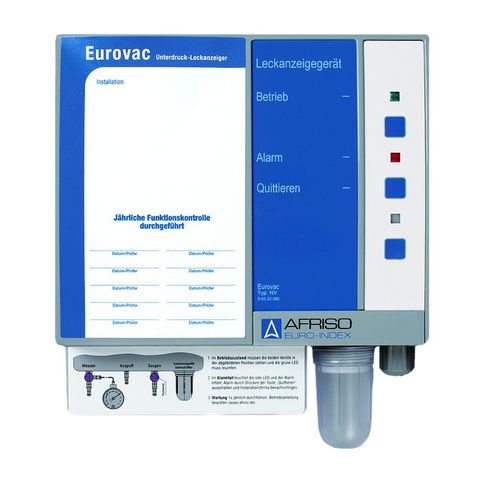

Oil leak detector Eurovac NV

vacuumcompactwith alarm

The Eurovac NV leak detector is a vacuum-type leak detector as per EN 13160-2, class 1 for safe monitoring of double-walled and single-walled tanks with inner lining for the storage of inflammable liquids (mineral oil products) of danger class A III as well as AdBlue® (urea solution 32.5 %) according to DIN 70070. The broad voltage range (AC 100–240 V) allows for application in a large variety of countries. The audible alarm can be muted with the Acknowledge button. Eurovac NV maintains a vacuum in the interstitial space of the tank (low vacuum range). The vacuum pump is operated by an economical DC motor with a high starting torque (energy efficiency class AA++). Eurovac features a switching output for additional equipment (such as EMS event reporting system) or integration into building control systems. The pump operating time can be displayed. Technical specifications: • - Operating temperature range: -5/+50 °C. • - Supply voltage: AC 100–240 V. • - Operating pressure: Interstitial space: -60 to -85 mbar. • - Supply voltage: AC 100–240 V. • - Nominal power < 10 VA. • - Switching output - Relay contact: 1 voltage-free changeover contact. • - Alarm sound: Min. 70 dB(A)
