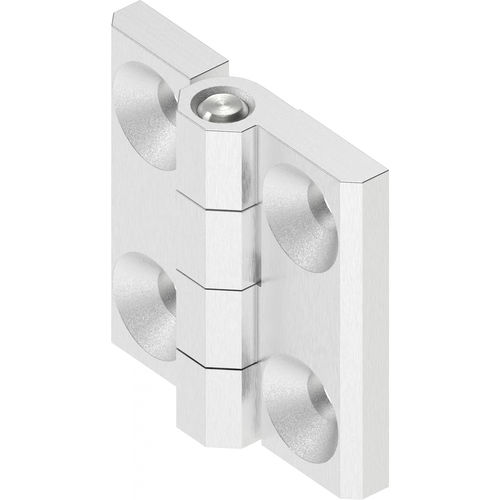

180° hinge 1056-U13-PHbuttstainless steelscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- butt
- Material
- stainless steel
- Installation
- screw-in
- Opening angle
- 180°
- Applications
- door
- Length
60 mm
(2.362 in)- Width
60 mm
(2.362 in)- Thickness
8 mm
(0.315 in)
Description
Door version - Right, Left
Cabinet type - Single cabinets, In-line cabinets with single door, In-
line cabinets with double door
Door return variable - Yes
Fixing type of door - screw-on from outside
Cut out in the door required - Bore holes in the door
Material of the module - Stainless Steel AISI316
Countersinkforcountersunk - Countersinkforall standardcountersunkscrews
screws accordingto standard - M8x...
Door position
Hinge position
Max. opening angle
Fixing type offrame
Captive pin
Surface of the module
Prod uct type
concealed
outside
180°
screw-on from outside
Ves
polished
Hinge
