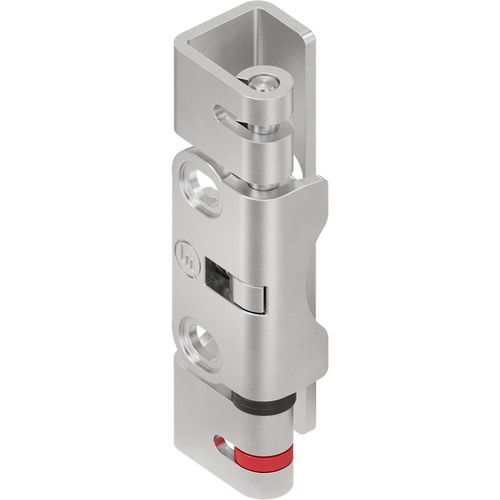

Zamak hinge 1031-U34125°doorsurface-mounted
Add to favorites
Compare this product
Characteristics
- Material
- zamak
- Opening angle
- 125°
- Applications
- door
- Other characteristics
- detachable, with stud, surface-mounted, with slotted hole
- Thickness
1.5 mm
(0.059 in)
Description
Product
for small countersunk head screw M6
Product advantages
Note on the product
1 = two sliding washers (mounting position)
Properties
Features / technical specifications
for small countersunk head screw M6
Product advantages
- Reduction of assembly time and, where applicable, the need for one assembler
- Ideal for small modular doors / flaps where there is not enough space to insert the hinge pin
- Double locking device for the hinge pin (knurling and locking ring) to meet shock and vibration requirements according to DIN EN 61373 cat. 1B
- Oblong holes in the door panel for precise door alignment
- Usable left / right
- Excellent sliding properties
- Successfully tested in long-term trials
Note on the product
1 = two sliding washers (mounting position)
Properties
- Internal reference: 1031-U34
- Barcode: 1031-U00034-0000000
- Article type: hinge
- Program: 1031
- Assembly material: zamak and steel
- Assembly surface: zinc-plated
- Detachable: without tools
- Door fixing type: screwed, with M6x12 welding stud
- Frame fixing type: screwed from outside, for small countersunk head screw M6
- Max. opening angle: 125°
- Cabinet type: side-by-side cabinets / single door
- Countersinking for countersunk head screw according to standard: countersink for countersunk head screw M8x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
- Door position: surface-mounted
- Door stop: Left, Right
- Door thickness: 1.5 mm
- Non-removable pin: Yes
- Cannot be disassembled from outside: Yes
Features / technical specifications
- Maximum opening angle: 125°
- Materials: zamak and steel (zinc-plated surface)
- Door fixing: screwed, with M6x12 welding stud
- Frame fixing: screwed from outside for small countersunk head screw M6
- Recommended door thickness: 1.5 mm
- Position: surface-mounted (usable left/right)
- Detachable: without tools, with non-removable pin
- Anti-vibration design: double locking device for the pin (knurling and locking ring) compliant with DIN EN 61373 cat. 1B
- Countersinking compatible with countersunk head screws according to DIN ISO 2009/2010 and DIN 7046-1/7046-2/7047
