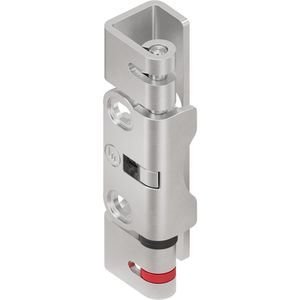

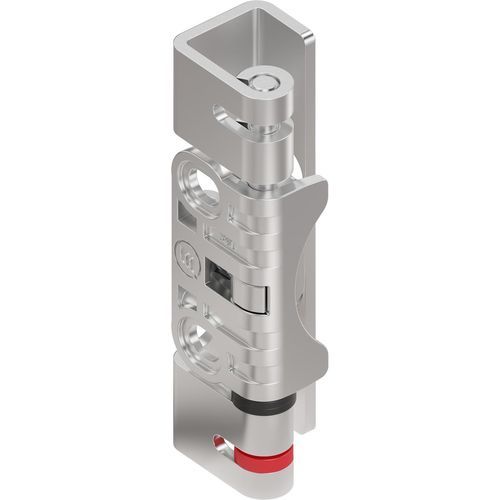

Stainless steel hinge 1031-U36screw-in125°door
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Installation
- screw-in
- Opening angle
- 125°
- Applications
- door
- Other characteristics
- with stud, removable, non-detachable, outside fastening
- Length
25 mm
(0.984 in)- Thickness
1.5 mm
(0.059 in)
Description
Short description:
for small head countersunk screw M6
Product benefits:
Product note:
1: two sliding washers (installation position)
Characteristics / technical specifications:
for small head countersunk screw M6
Product benefits:
- Reduction of assembly time and potential saving of an assembler
- Ideal for small module doors / flaps where there is no space to withdraw a hinge pin
- Double pin retention (knurl and shaft clamping ring) to meet shock and vibration requirement according to DIN EN 61373 Cat. 1B
- Elongated holes in the door leaf for precise door alignment
- Usable left / right
- Excellent sliding properties
- Successfully proven in long-term testing
Product note:
1: two sliding washers (installation position)
Characteristics / technical specifications:
- Internal reference: 1031-U36
- Standards: DIN EN 61373 (shock & vibration test)
- Barcode: 1031-U00036-0000000
- Product type: Hinge
- Material: Stainless steel
- Program: 1031
- A-dimension, variable: 25 mm
- Removable: tool-free
- Mounting on door: screw-on, with weld stud M6 x 12
- Mounting on frame: screw-on from outside, for small head countersunk screw M6
- Max. opening angle: 125°
- Cabinet type: single enclosures, row enclosures with double door
- Countersink for countersunk screws according to standard: countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
- Door position: overlay
- Hinge side: Left, Right
- Door thickness: 1.5 mm
- Non-losing pin: Yes
- Not removable from outside: Yes
