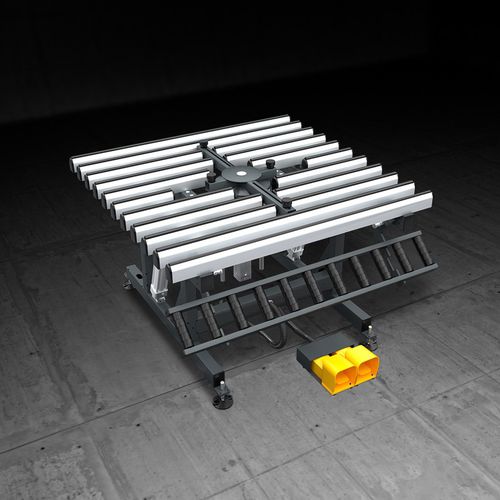

Pneumatic assembly bench BA 411

modular

Assembly bench for glazed sashes with work table tilting from 0° (horizontal) to 85°. The drop-away roller conveyor is adjustable in height (from 170 to 460 mm) independently from the work table. The work table is adjustable from 895 to 965 mm while the feet are drilled with holes for fl oor anchoring. The bench is provided with a central spider clamp for hoisting and positioning the glass. The anti-friction hard PVC support surface preserves the integrity of the frame by allowing it to slide. Height adjustable feet to ensure the work bench can be positioned at the required height and perfectly flush with the other products in the Dynamic Line. The feet also have holes so they can be anchored to the floor. A manually-operated tilting roller conveyor with automatic locking (to 2 preset positions), allows horizontal translation of the frame, thanks to rollers (mounted on a stem) that ensure high smoothness and ease of movement along the production line. The work bench is tilting with fully pneumatic movement. By means of the footswitch, the work surface can be tilted from 0°, horizontal position, to 85°. The central, retractable crossbeam is equipped with four rubber points for glass support that can be adjusted along the axes. When the bench is in the horizontal position, the crossbeam can be raised by means of the footswitch and rotated manually. A safety system prevents lifting the crossbeam with the bench in a tilted position, or tilting the bench when the crossbeam is raised.
