Multi-parameter test bench FIVE CS

manualfor assembly linesindustrial

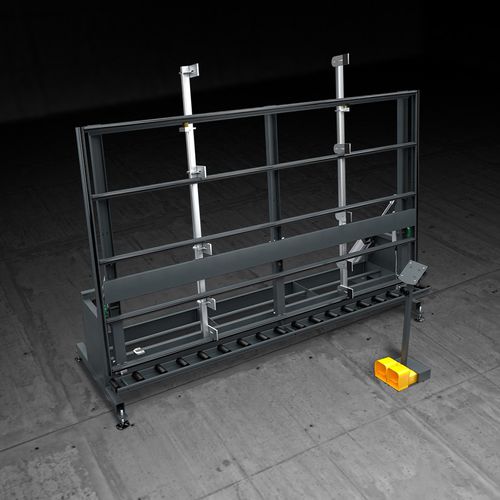

Test bench for frames in aluminium. It allows re-create the conditions of use of the frame. The casement is locked by a system of vices adjustable throughout the casement height; the operator can assemble the sash and the glass inside the casement and finally test it. The roller conveyor allows the operator to feed/outfeed heavy frames in complete autonomy. The frame clamping system is self-centring, thanks to a rack that ensures perfect parallelism and uniform pressure through the use of pneumatic cylinders. A pneumatically-operated tilting roller conveyor allows horizontal translation of the frame by stem-mounted rollers that ensure smoothness and ease of movement. The work bench is tilting with fully pneumatic movement. By means of the footswitch, the work surface can be tilted from 0°, horizontal position, to 85°. The anti-friction hard PVC support surface ensures great smoothness of the frame allowing easy handling. A centre console provides housing for the bi-manual control that manages the locking/unlocking of the frame. In addition, a double footswitch allows the bench to be tipped or the horizontal profile rollers to be operated.
