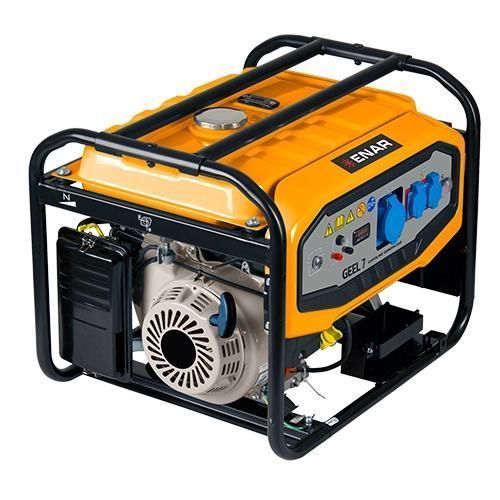

Frequency generator GEEL seriesAVRautomatic voltage regulatorcurrent
Add to favorites
Compare this product
Characteristics
- Type
- voltage, frequency, current, AVR, automatic voltage regulator
- Other characteristics
- portable
- Applications
- for industrial applications, residential, commercial
Description
Overview
The GEEL single-phase petrol generator range from ENAR provides portable electrical power where mains supply is not available. Models GEEL 2i, 3, 5 and 7 cover outputs for light domestic use up to demanding site and industrial applications.
Key features
Models
Technical characteristics (table)
Feature / GEEL 2i - CE / GEEL 3 - CE / GEEL 5 - CE / GEEL 7 - CE
DIMENSIONS (L x W x H mm): 499 x 285 x 455; 590 x 475 x 462; 681 x 546 x 550; 681 x 546 x 550
INTENSITY: 7 A; 7 A; 12,2 A; 21,7 A
MAX. POWER INPUT: 1,8 KW; 2,8 KW; 5 KW; 6 KW
MOTOR: ENAR LC148F; ENAR G210FA; ENAR LC188FD; ENAR LC190FD
POWER (indicated): 2,2 KW; 4,4 KW; 8,2 KW; 9 KW
POWER OUTPUT: 1,6 KW; 3 KW; 5,5 KW; 6,5 kW
SPEED: 5.000 r.p.m; 3.600 r.p.m; 3.600 r.p.m; 3.600 r.p.m
WEIGHT: 21 kg; 49 kg; 81 kg; 85 kg
Applications
The GEEL single-phase generators suit construction sites, light industrial use, commercial applications, domestic backup and agricultural tasks where grid power is unavailable. They are specified for portable onsite power, temporary supply and emergency backup.
Technical specifications
The GEEL single-phase petrol generator range from ENAR provides portable electrical power where mains supply is not available. Models GEEL 2i, 3, 5 and 7 cover outputs for light domestic use up to demanding site and industrial applications.
Key features
- Automatic Voltage Regulator (AVR) for stable output voltage
- Rated voltages: 120 / 230 / 125-250 V (model dependent)
- Frequency: 50-60 Hz
- Electric start available on GEEL 5, GEEL 7 and GEEL 10
- Lifting point on GEEL 7 (and GEEL 10)
- Transport wheels included on GEEL 5 and GEEL 7 (and GEEL 10)
- DC auxiliary output: 12 V, 8.3 A
Models
- GEEL 2i - CE
- GEEL 3 - CE
- GEEL 5 - CE
- GEEL 7 - CE
Technical characteristics (table)
Feature / GEEL 2i - CE / GEEL 3 - CE / GEEL 5 - CE / GEEL 7 - CE
DIMENSIONS (L x W x H mm): 499 x 285 x 455; 590 x 475 x 462; 681 x 546 x 550; 681 x 546 x 550
INTENSITY: 7 A; 7 A; 12,2 A; 21,7 A
MAX. POWER INPUT: 1,8 KW; 2,8 KW; 5 KW; 6 KW
MOTOR: ENAR LC148F; ENAR G210FA; ENAR LC188FD; ENAR LC190FD
POWER (indicated): 2,2 KW; 4,4 KW; 8,2 KW; 9 KW
POWER OUTPUT: 1,6 KW; 3 KW; 5,5 KW; 6,5 kW
SPEED: 5.000 r.p.m; 3.600 r.p.m; 3.600 r.p.m; 3.600 r.p.m
WEIGHT: 21 kg; 49 kg; 81 kg; 85 kg
Applications
The GEEL single-phase generators suit construction sites, light industrial use, commercial applications, domestic backup and agricultural tasks where grid power is unavailable. They are specified for portable onsite power, temporary supply and emergency backup.
Technical specifications
- GEEL 2i - CE: Max. power input 1,8 KW; Power 2,2 KW; Power output 1,6 KW; Motor ENAR LC148F; Speed 5.000 r.p.m; Intensity 7 A; Dimensions 499 x 285 x 455 mm; Weight 21 kg
- GEEL 3 - CE: Max. power input 2,8 KW; Power 4,4 KW; Power output 3 KW; Motor ENAR G210FA; Speed 3.600 r.p.m; Intensity 7 A; Dimensions 590 x 475 x 462 mm; Weight 49 kg
- GEEL 5 - CE: Max. power input 5 KW; Power 8,2 KW; Power output 5,5 KW; Motor ENAR LC188FD; Speed 3.600 r.p.m; Intensity 12,2 A; Dimensions 681 x 546 x 550 mm; Weight 81 kg; Includes electric start and transport wheels
- GEEL 7 - CE: Max. power input 6 KW; Power 9 KW; Power output 6,5 kW; Motor ENAR LC190FD; Speed 3.600 r.p.m; Intensity 21,7 A; Dimensions 681 x 546 x 550 mm; Weight 85 kg; Includes electric start, transport wheels and lifting point
