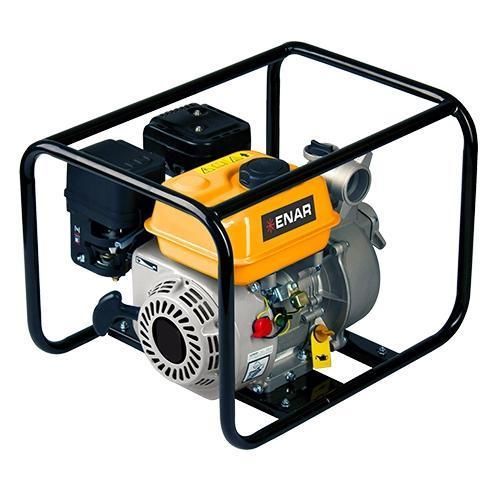

Centrifugal pump EBRO series
watergasoline engineself-priming

Centrifugal pump - EBRO series - ENAR - water / gasoline engine / self-priming

Centrifugal pump - EBRO series - ENAR - water / gasoline engine / self-priming - image - 2

Centrifugal pump - EBRO series - ENAR - water / gasoline engine / self-priming - image - 3

Centrifugal pump - EBRO series - ENAR - water / gasoline engine / self-priming - image - 4

Centrifugal pump - EBRO series - ENAR - water / gasoline engine / self-priming - image - 5

Add to favorites

Compare this product

Characteristics

Technology: centrifugal
Fluid: water
Operation: gasoline engine
Priming: self-priming
Mobility: mobile
Applications: irrigation, dewatering
Other characteristics: portable, transportable, with cover
Flow: 30 m³/h, 60 m³/h, 69 m³/h
(1,059.44 ft³/h, 2,118.88 ft³/h, 2,436.712 ft³/h)
Head: 20 m, 30 m, 35 m
(65'07" , 98'05" , 114'09" )
Power: 4.1 kW, 6.8 kW
(5.57 hp, 9.25 hp)
Input diameter: 80 mm
(3.15 in)
Output diameter: 80 mm
(3.15 in)
Length: 544 mm, 550 mm, 678 mm
(21 in, 22 in, 27 in)
Width: 424 mm, 430 mm, 528 mm
(16.69 in, 16.93 in, 20.79 in)
Height: 402 mm, 470 mm, 528 mm
(15.83 in, 18.5 in, 20.79 in)
Weight: 26 kg, 26.5 kg, 64 kg
(57.32 lb, 58.42 lb, 141.1 lb)

Description

Product description
The new EBRO water pump range from ENAR includes multiple models offering high suction capacity and connection diameters up to 80 mm. Available in compact, mid and high-flow variants, the range is designed for fast water transfer on worksites and agricultural settings.

Key features

Rated rotational speed: 3,600 r.p.m.
Manual recoil starting system
Various unleaded petrol engine options (ENAR G210FA, ENAR G300FA)
Optional transport wheels for EBRO 3D
Housing pull-out cover for EBRO 3D

Applications
Suitable for dewatering and pumping tasks on construction sites, trench drainage, agricultural irrigation and emergency water transfer. The range covers applications requiring suction up to 7 m and flows up to 69 m³/h.

Technical characteristics

Models: EBRO 2C | EBRO 3C | EBRO 3D
Dimensions (mm): EBRO 2C — 544 x 424 x 402; EBRO 3C — 550 x 430 x 470; EBRO 3D — 678 x 528 x 528
Max. flow: EBRO 2C — 30 m³/h; EBRO 3C — 60 m³/h; EBRO 3D — 69 m³/h
Max. suction: EBRO 2C — 6 m; EBRO 3C — 6 m; EBRO 3D — 7 m
Motor: EBRO 2C — ENAR G210FA; EBRO 3C — ENAR G210FA; EBRO 3D — ENAR G300FA
Power: EBRO 2C — 4.1 kW; EBRO 3C — 4.1 kW; EBRO 3D — 6.8 kW
Pressure head: EBRO 2C — 30 m; EBRO 3C — 35 m; EBRO 3D — 20 m
Weight: EBRO 2C — 26 kg; EBRO 3C — 26.5 kg; EBRO 3D — 64 kg
Rotation speed: 3,600 r.p.m.; Start: manual recoil
Options: transport wheels and housing pull-out cover for EBRO 3D
