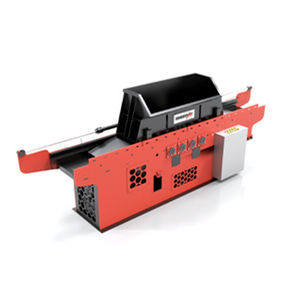

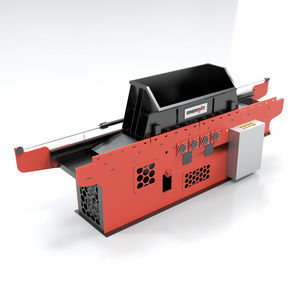

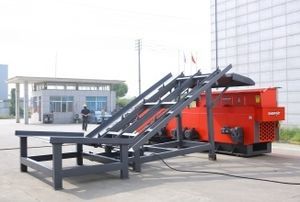

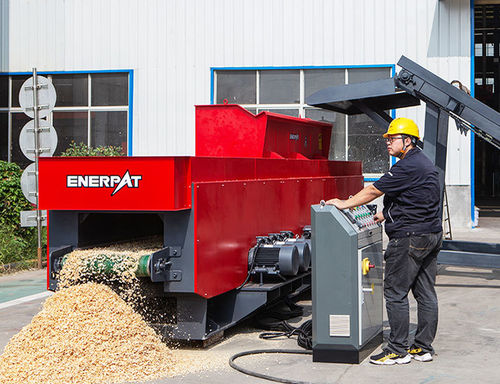

Chips making machine EWS-45

Overview
The ENERPAT EWS-45 wood shaving machine converts round logs and trunks into uniform shavings for biomass, animal bedding and industrial uses. Designed for timber processors and biomass plants, it pairs multi-motor drive and European components with adjustable cutting settings to deliver stable high-throughput operation and simplified maintenance.

Industry Challenges

• Inconsistent shaving quality: Variations in thickness and shape reduce downstream processing efficiency and product value.
• Insufficient capacity: Small units cannot meet bulk demand while oversized systems add cost and footprint.
• High maintenance expense: Frequent replacements and downtime disrupt production schedules.
• Rigid output: Non-adjustable machines limit applicability across bedding, pellet feedstock and industrial uses.

Why ENERPAT EWS-45 Stands Out

• Customizable shavings
  • Adjustable blade settings produce shaving thicknesses approx. 1–10 mm and variable widths suitable for bedding, pellet raw material or furniture applications.
  • Accepts logs from 10 cm up to 45 cm diameter, covering small branches to large trunks.
• High productivity
  • Throughput: 2,000–2,500 kg/h, appropriate for workshops to industrial lines.
  • Drive: 6 × 7.5 kW motors deliver sustained torque for heavy cutting tasks.
• European components for reliability
  • German FAG sealed bearings and European tungsten‑carbide coated blades improve uptime and blade life.
  • Steel chain hopper drive reduces slip and maintenance versus belt systems.
• Compact heavy-duty footprint
  • Machine size 6,120 × 1,750 × 1,640 mm optimizes floor use while handling large logs.
  • Machine weight 5,400 kg ensures operational stability.
• User-friendly operation
  • Hopper 2,200 × 600 mm for easier loading and reduced manual handling.
  • Six rotating shafts ensure even distribution and limit clogging.

Raw Material And End Products
The EWS-45 accepts whole logs and branches (10–45 cm diameter) and produces shavings for animal bedding, pellet feedstock and other wood-fiber applications.

Details / Core Advantages

• Siemens motors: Energy-efficient operation supporting continuous 24/7 production with reduced vibration.
• Schneider PLC control: Touchscreen PLC for one-touch operation and simplified diagnostics.
• European hardened blades: Tungsten‑carbide coating for extended sharpness and fewer replacements.
• German FAG bearings: Sealed high-duty bearings for long service intervals and lower lubrication needs.

Technical specifications

• Model: EWS-45
• Motor power: 7.5 × 6 kW
• Hopper drive: Steel chain
• Hopper size: 2,200 × 600 mm
• Shaft quantity: 6 pcs
• Capacity: 2,000–2,500 kg/h
• Machine size: 6,120 × 1,750 × 1,640 mm
• Machine weight: 5,400 kg
• Log diameter capacity: up to 45 cm
• Typical shaving thickness (adjustable): approx. 1–10 mm
