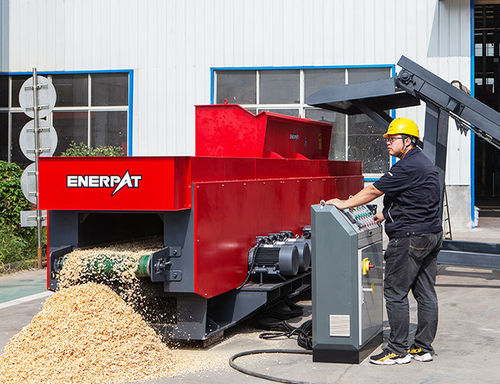

Stationary wood shaving machine EWS-37

Overview
The ENERPAT EWS-37 is an industrial wood shavings machine engineered for continuous, high-efficiency production of uniform, adjustable wood shavings for bedding, packaging, panelboard feedstock and biomass fuel applications.

Key benefits

• High-efficiency cutting for consistent shavings suitable for multiple end uses.
• Adjustable shaving size and thickness to meet application requirements.
• Designed for continuous industrial operation with durable European components to reduce downtime.

Main features

• Suitable raw material: logs (recommended diameter 10 cm – 45 cm).
• Production capacity: medium to large-scale output (see specifications for exact figures).
• Drive and electrical: Siemens motors with Schneider PLC control for automated, reliable operation.
• Cutting components: European hardened blades with tungsten-carbide coating and German FAG sealed bearings for extended service life.

Raw material and end products

• Raw material: round logs and wood pieces within the recommended diameter range.
• End products: adjustable wood shavings for animal bedding, packaging filler, panelboard feedstock or biomass.

Control & automation

• Schneider PLC electrical system with touchscreen one-touch operation and diagnostic functions for simplified setup and maintenance.

Construction & durability

• European hardened blades (tungsten-carbide coating) for longer cutting life.
• German FAG sealed bearings designed for high loads and extended maintenance intervals.
• Robust drive and structural components to ensure stable, low-vibration operation.

Technical specifications

• Model: EWS-37
• Motor power: 18.5 kW × 2 (Siemens motors)
• Hopper drive: Hydraulic drive
• Hopper size: 1400 × 450 mm
• Shaft quantity: 4 pcs
• Capacity (output): 1000–1300 kg/h
• Machine dimensions (L×W×H): 4800 × 1200 × 1800 mm
• Machine weight: 3500 kg
• Recommended log diameter: 10 cm – 45 cm
• Electrical/control system: Schneider PLC with touchscreen (one-touch operation)
• Cutting system: European hardened blades (tungsten-carbide coating)
• Bearings: German FAG sealed bearings (extended service life, reduced lubrication needs)
