Wood shaving production machine EWS

continuousautomated

ENERPAT Wood Shaving Production Line provides an integrated solution for producing uniform thin wood shavings by combining shaving, drying, screening and packaging. The line is engineered for automated, stable and high-capacity operation suitable for animal bedding, biomass fuel and protective packaging applications.

Main functions and components

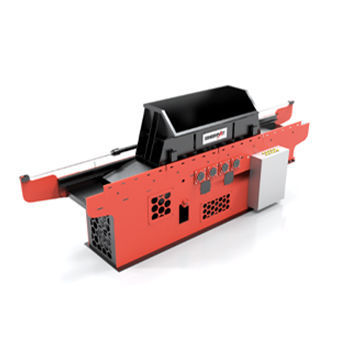

• Wood Shaving Machine: Produces shavings from logs; shavings size and thickness can be configured to application requirements.
• Feeding Conveyor: Transfers shavings to the dryer; rubber belt with long service life and variable-speed motor for controlled feeding.
• Rotary Dryer: Reduces moisture to below 10% for storage-ready shavings; burner compatible with wood waste, wood pellets, gasoline, natural gas or diesel.
• Trommel Screen: Removes undersized shavings and sawdust; screen mesh size configurable.
• Wood Shavings Bagging Machine: Weighs and fills plastic bags or bales with consistent weight and size; bale/bag dimensions customizable.
• Vacuum Sealing Machine: Seals and de-aerates bags to preserve packed shavings.



Product advantages





• Modular design: Machines can be combined or scaled to match production needs.
• Stable operation: High level of automation for continuous, reliable output.
• Intelligent control: SCHNEIDER electrical components with PLC and touchscreen HMI for straightforward operation and monitoring.
• Low operating cost: Efficient components and monitoring reduce energy consumption while maintaining throughput.
• High capacity: Configurable line capable of reaching up to 10 tons per hour.
• Customization: ENERPAT offers tailored configurations for shavings size, screen mesh, bale size and bag weight.



Characteristics / technical specifications





• Scope: Complete line including shaving, drying, screening and packaging.
• Capacity: Up to 10 tons per hour (maximum capacity stated).
• Dryer output moisture: Designed to achieve wood shavings moisture below 10%.
• Control system: SCHNEIDER electric components, PLC and touchscreen HMI for intelligent control.
• Dryer fuel options: wood waste, wood pellet, gasoline, natural gas, diesel.
• Customization: Shavings size/thickness, screen mesh size, bale size and bag weight configurable per customer requirements.
