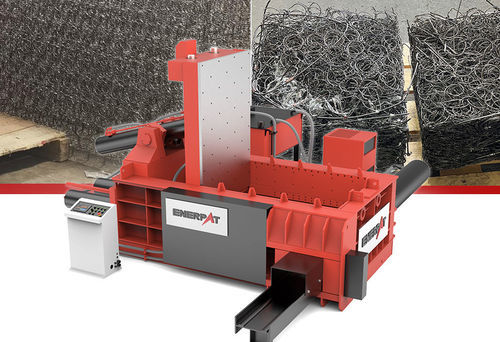

Waste baling press AMB-L2017-250

for metalsfor scrap metalfor stainless steel

Product Overview
The ENERPAT AMB-L2017-250 High Density Wire Baler Machine is a door-cover type hydraulic baler engineered to process a wide range of light-gauge and difficult-to-bale metals, producing dense, stackable bales to reduce storage and transport costs and improve recycling value.

Core Technical Specifications

• Compression Force: 250 Tons
• Chamber Size: 2000 mm (L) × 1750 mm (W) × 1200 mm (H)
• Bale Size: 500 mm × 500 mm (L)
• Power: 2 × 22 kW

Materials It Processes

• Light-gauge ferrous scrap: light steel/iron scrap, sheet metal, tinplate, appliance shells (washing machine/refrigerator panels)
• Manufacturing offcuts: stamping scrap, punching scrap, press-shop scrap, automotive panel scrap
• Non-ferrous & special scrap: stainless steel (SUS304/316) offcuts, aluminum sheet/profile scrap
• Wire & stringy materials: steel wire scrap, spring wire, wire brushing scrap

Operating Principle
The machine uses a hydraulic door-cover design to apply focused compression to loose, voluminous scrap, converting it into compact, dense bundles. Material feeding is typically performed by forklift or unloading devices into the compression chamber; hydraulic compression compacts the material, and an automatic hydraulic cylinder ejects finished bales through a small door.

Features & Advantages

• Door-cover design for focused, high-density compaction
• High-flow hydraulic system with premium seals and cartridge valve blocks for reliable operation
• Optional integrated cutting blades on the press head for shearing long or stringy materials
• Industrial oil cooler for continuous operation
• Intelligent PLC control with touchscreen, programmable cycles, real-time monitoring and automatic alarms
• Improves logistics (3–6× loading efficiency), reclaims storage space (60–80% reduction), and standardizes bale handling

Specification Sheet (selected comparative data)

• AMB-L1480-160 — Press Force: 160 T; Press Chamber: 1400 × 800 × 700 mm; Motor Power: 22 kW; Pump: 160 m/r; Bale Size: 350 × 350 mm; Capacity (Steel): 2.0–2.5 tons/hour
• AMB-L2014-250 — Press Force: 250 T; Press Chamber: 2000 × 1400 × 900 mm; Motor Power: 2 × 22 kW; Pump: 2 × 160 m/r; Bale Size: 500 × 500 mm; Capacity (Steel): 5.0 tons/hour
• AMB-L2520-315 — Press Force: 315 T; Press Chamber: 2500 × 2000 × 1200 mm; Motor Power: 2 × 45 kW; Pump: 2 × 250 m/r; Bale Size: 500 × 500 mm; Capacity (Steel): 8.0–10.0 tons/hour

Material Handling & Working Flow

• Material Feeding: materials transported to the compression chamber via forklift or unloading devices
• Hydraulic Compression: driven by the hydraulic system to compress waste metal into compact bundles
• Automatic Bundle Ejection: bundles automatically pushed out through the small door by a hydraulic cylinder

Designed For

• Scrap recycling yards and processors
• Manufacturing and fabrication plants (automotive, appliance, metalworking)
• Auto dismantlers
• Specialty metal processors (stainless steel, aluminum)

Characteristics / Technical Specifications

• Model: AMB-L series
• Compression Force (example AMB-L2017-250): 250 Tons
• Chamber Size (example AMB-L2017-250): 2000 × 1750 × 1200 mm
• Bale Size (example AMB-L2017-250): 500 × 500 mm
• Motor Power (example AMB-L2017-250): 2 × 22 kW
• Pump Flow (example AMB-L2017-250): 2 × 160 m/r (model dependent)
• Capacity Range (steel): typically 2.0–10.0 tons/hour depending on model and material
• Optional features: integrated cutting blade, industrial oil cooler, IP54/IP55 electrical cabinet, PLC touchscreen control
