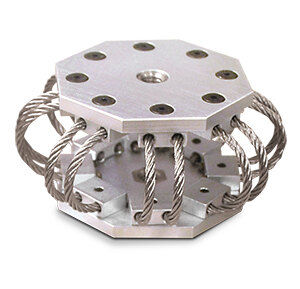

Round anti-vibration mount CCR3 series

solid aluminumstainless steelfor motors

Product overview
Enidine’s Circular Compact Rope isolators use stainless steel cable and RoHS‑compliant aluminum connecting bars to provide vibration and shock isolation in a simple single center‑point installation. Engineered for environmental stability, these wire rope isolators deliver high stiffness density and durable all‑metal construction for industrial and aerospace applications.

Typical applications:

• Camera stabilization
• Electronics and avionics isolation
• Lab instrumentation
• Motors and pumps
• Space‑limited installations

General specifications:

• Versatile single‑point installation suitable for a wide range of mounts
• Steel clinch fastener for high thread strength
• Higher stiffness density compared with standard wire rope isolators
• Standard bell‑mouth mount bar design to maximize fatigue life
• Robust all‑metal construction
• Operating temperature range: -150ºF to 500ºF (-101ºC to 260ºC)

Technical characteristics / specifications

• Construction: stainless steel cable with RoHS‑compliant aluminum connecting bars
• Installation: single center‑point mount (standard bell‑mouth mount bar)
• Fastening: steel clinch fastener providing high thread strength
• Design features: bell‑mouth mount bar for maximized fatigue life; all‑metal robust design
• Performance: increased stiffness density vs. standard wire rope isolators; environmentally stable
• Operating temperature: -150ºF to 500ºF (-101ºC to 260ºC)
• Data: performance curves and specification tables available
