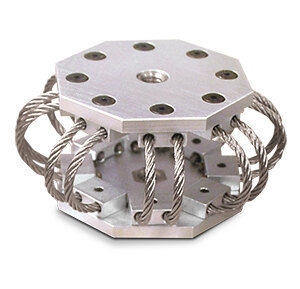

Round anti-vibration mount ULTRA-HERM®

elastomerstainless steelfor marine applications

The patent pending ULTRA-HERM® incorporates the use of a traditional Enidine helical wire rope isolator encased in a proprietary elastomer based compound creating advanced vibration isolation mounts to meet advanced military and industrial application requirements. The stainless steel cable of the mount provides for a rugged construction, while the elastomer provides additional damping and stiffness. This unique design results in fail safe vibration isolation mounts with higher stiffness and energy absorption capacities. - The ULTRA-HERM® vibration isolation mounts are readily scalable and performance easily tuned by varying the wire diameter, loop size, number of loops and elastomeric properties. The ULTRA-HERM® is proven particularly strong in low natural frequency “soft deck” applications of 12-16 Hz, reducing output G’s to below 15G’s. Its sealed nature of construction also provides for easy NBC washdown. Since the mounting size of the ULTRA-HERM® vibration isolation mounts are virtually identical to that of standard wire rope isolators used in many applications, equipment upgrades are both simple and seamless with drop-in replacement capability. Advantages: - Ultra-high damped elastomer maximizes shock attenuation performance. - Requires less displacement to attenuate shock events compared to traditional isolators. - The all metal construction and elastomer can operate in a wide temperature range. - The elastomer eliminates fire/smoke/toxicity concerns when installed in a closed space or sub-surface type application. Performance Statistics: - Increased damping compared to traditional solutions. - Wide extended operating temperature range from -100°F to 350°F - Flame resistant, passing flame, smoke, and toxicity tests. - Product Type: Vibration Isolation Mounts - Brand: Enidine - Model: ULTRA-HERM® - Applications: Military and industrial, especially naval/shipboard, soft deck mounting (12-16 Hz), drop-in replacement for standard wire rope isolators - Construction: Stainless steel cable, proprietary elastomer compound - Key Features: Fail safe, scalable, tunable performance, high energy absorption, easy NBC washdown, flame/smoke/toxicity safe - Operating Temperature Range: -100°F to 350°F - Shock Attenuation: Output G’s reduced to below 15G’s
