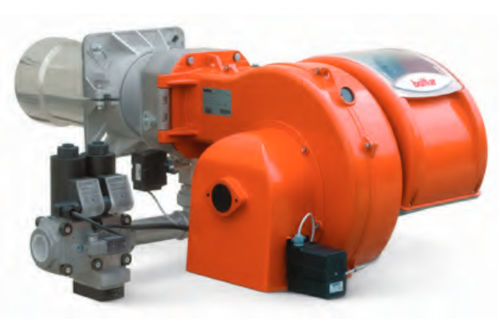

Nozzle mix burner 170 - 1 200 kW | TBG-ME series
natural gasdirect fired

nozzle mix burner
nozzle mix burner
nozzle mix burner
Add to favorites
Compare this product


Characteristics

Type
nozzle mix
Power source
natural gas
Firing
direct fired
Power

Min.: 170,000 W (580,063.8 BTU/h)

Max.: 1,200,000 W (4,094,568 BTU/h)

Description

EOGB Energy Products TECHNICAL AND OPERATIONAL FEATURES: • LESS NOx and CO release gas burner adherent with European standard EN676 "Classe III". • Dual-stage incremental /adjusting functioning. • Capability to function with yield modulation with the help of mechanized RWF40 control built on the control panel (to be procured independently with the modulation kit). • Gas modification by pneumatic air/gas percentage function valve. • Part ignition gas re-flow blast- pipe with minimal NOx discharge (class III). • Superior aeration competence, minimal electrical input and minimal noise. • Pivot opening on dual sides for simple admittance to the ignition head when burner is configured. • Air capability alteration with linear opening regulated by electric servo motor. • Air damper closing when burner in non functional. • Electrical panel that combines by 4 and 7 pôle plugs/sockets (typical accessories). • Electrical panel with safety rating of IP 55. • Sliding boiler connecting flange to adjust to head protrusion of the different models of boilers. • 1:5 High turndown ratio.
