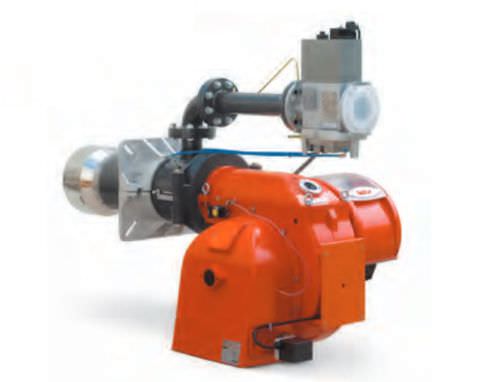

Nozzle mix burner 400 - 5 900 kW | BGN-LX series
natural gasdirect firedlow-NOx

nozzle mix burner
nozzle mix burner
nozzle mix burner
Add to favorites
Compare this product


Characteristics

Type
nozzle mix
Power source
natural gas
Firing
direct fired
Other characteristics
low-NOx
Power

Min.: 400,000 W (1,364,856 BTU/h)

Max.: 5,900,000 W (20,131,626 BTU/h)

Description

Reduced NO2 and CO emissions gas burner is manufactured as per the European gardes EN676 "Classe III". It features a Two-phase advanced output operation, capacity to function with output modulation using a mechanical RWF40 controller attached on the regulation console. Additionally, it consist of an Air-gas combining at combustion-pipe for being able to establish extremely reduced contaminant emissions in relation to nitrous oxides (NO2). It contains the capacity to accomplish maximum combustion ratios by controlling combustion air as well as blast-pipe. Maintenance enables owing to the detachable combining unit without removing the burner from the boiler. Moreover, the lowest and the highest air flow control for the primary as well as the secondary phase can be obtained using electric servomotor with stoppage function of entrance for avoiding any type of heat dispensation to flue.
