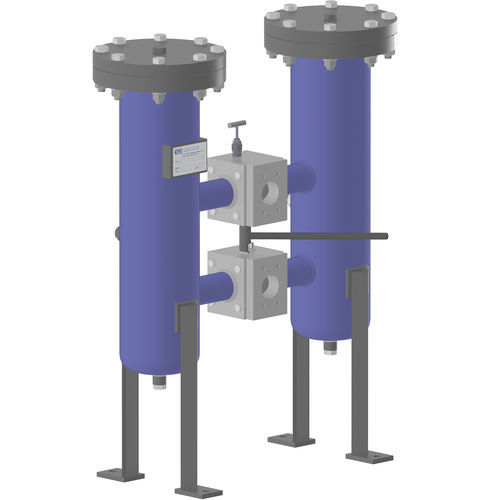

Hydraulic filter 16/40/45/60-DK seriescartridgepressurelow-pressure
Add to favorites
Compare this product
Characteristics
- Designed for
- hydraulic
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- low-pressure
- Material
- steel
- Other characteristics
- duplex
- Operating pressure
Min.: 16 bar
(232.06 psi)Max.: 60 bar
(870.226 psi)- Flow
2,950 l/min
(779.308 us gal/min)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
Designed as per PED / ASME / Standard Engineering Practice, based on project / product requirement, the DK series Filters are used for direct installation in the pipeline and provide wear protection of downstream components & systems. Duplex in design the filter inlet & outlet are located on same side with inlet on the top.
The Filter consists of two filter housings - each with an element locating spigot - connected by a change-over assembly and an integral pressure equalisation valve. The change-over assembly is made of Two Nos. 3-way Ball valves coupled for simultaneous operation with a common handle. The change-over handle points to the housing in operation.
Bolts on the filter covers are unscrewed for maintenance.
