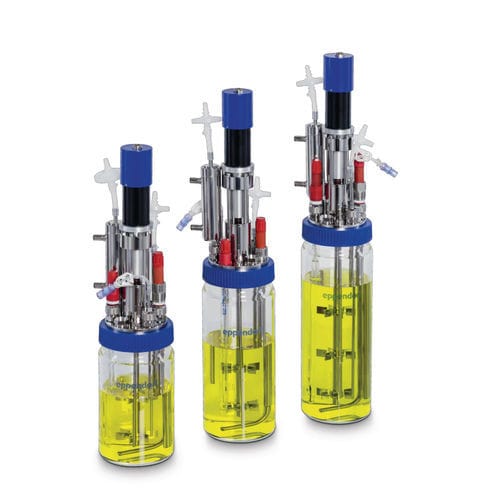

Process vessel DASGIP® Bioblock/SciVario®

heatinghandlingmonitoring

Lab space is critical: The Eppendorf DASGIP Bioblock provides a user–friendly solution for individual temperature control in up to four bioreactors with minimum space requirements and easy handling. Product Information The compact DASGIP Bioblock combined with the DASGIP TC4SC4B Module for Temperature and Agitation Control provides an integrated solution for accurate and independent temperature control for 4 bioreactors with overhead-driven agitation. Each well is equipped with an individual electrical heating element featuring an integrated safety temperature sensor as well as separate cooling coils, activated by solenoid valves. A wide choice of DASGIP vessels suitable for the Bioblock is available (working volumes ranging from 200 mL – 2 L), including single-use vessels BioBLU 1c and 1f. Applications Performing active cooling in microbial applications, e.g. high cell density fermentations Special applications in biocatalysis or biofuel development (up to 99 °C) Active cooling and individual temperature profiles in cell culture for best possible protection of cells and products Features Compact solution for 4 vessels with a footprint of 425 x 520 mm (17 x 20 in) Accurate temperature control up to 99 °C, individually in each well Wide range of Bioblock-suitable glass and single-use vessels for cell culture and microbiology Vessels can be directly inserted into the Bioblock without any additional connections
