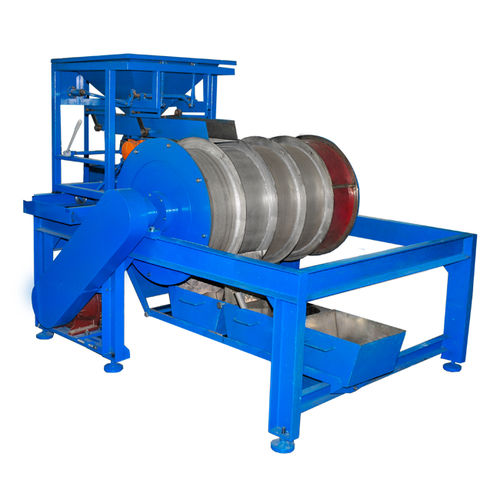

Laboratory separator PullMag S

for bulk materialsdry materialsmagnetic drum

Laboratory magnetic drum separator ERGA PullMag S for studying applicability of dry separation processes for bulk ore and nonmetallic materials and conducting research in industrial and university testing laboratories. - Wide range of magnetic intensity from 50 to 1 000 mT: A special feature of PullMag S drum separator is its sectoral design ensuring application of the separator for concentration of materials with different magnetic susceptibility. Magnetic intensity on operating surfaces of the sectors can range from 50 to 1 000 mT (from 500 to 8 000 Gs) for systems with magnetic stirring and up to 1000 mT (10 000 Gs) for systems without magnetic stirring. - Separated material size from 0.1 to 200 mm: PullMag S separator can be used for conducting laboratory- and pilot-scale tests (up to 5 t/h) on material with size up to 200 mm with option of obtaining middlings. - Automatic cleaning - Customized selection of equipment: Laboratory magnetic separator PullMag S is optimized for application in different operating modes. Operating length of magnetic roll can vary from 400 to 1200 mm with diameter from 320mm to 900mm depending on feed material sizes and capacity. - Fine separation settings: PullMag S separator is equipped with a mobile vibrating tray, providing feeding of material to the required sector. PullMag S is equipped with feed hopper and vibrating feeder for monolayer material feed. Fine settings of splitter and drum rotation frequency ensure its efficient operation with different processed materials. - Easy to operate and maintain
