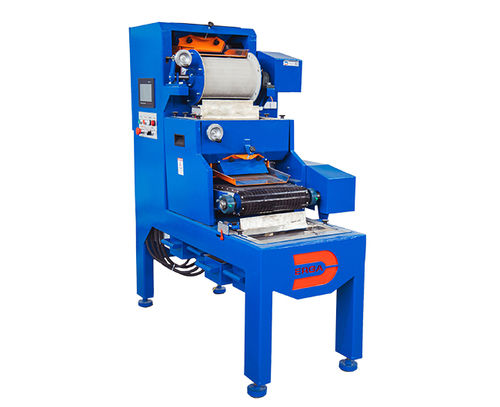

Dry separator DrumMag-RollMag

for bulk materialsmagnetic drummagnetic roller

DrumMag-RollMag dry separation complex for recovery of strongly and weakly magnetic materials, rough concentrates and conducting scientific research in laboratories of ore dressing plants, mining and mineral processing plants, universities. - 2 in 1: drum and roll separators in one plant: The complex consists of DrumMag magnetic drum separator recovering such strongly magnetic minerals as magnetite, pyrrhotite and ingot iron, and a roll separator of RollMag series with magnetic field intensity up to 1 700 mT (17 000 Gauss), which recovers weakly magnetic minerals (limonite, picroilmenite, pyrope, etc.), available in diamond- and gold-bearing ores. - Ideal solution for recovery of rough concentrates: DrumMag-RollMag complex is distinguished by its high capacity, reducing the time for sample processing by 3 times. The plant perfectly suits for recovery of rough concentrates and is different from electromagnetic separators with capability to process a wide range of material sizes (-20 + 0.1 mm), separation quality (percentage of recovery of weakly magnetic minerals). - Automatic cleaning: Cleaning of raw materials from strongly and weakly magnetic impurities is automatic with minimum personnel involvement using special design of ribs on DrumMag separator and Kevlar belts on RollMag separator. - Customized selection of equipment: Performance of this complex varies depending on material and design capacity. Customized selection of diameter and length of drum and magnetic roll, magnetic field intensity value, close or open configurations guarantee accurate solution of the set task. - Compact and mobile - Wide range of separation settings - Easy to operate and maintain
