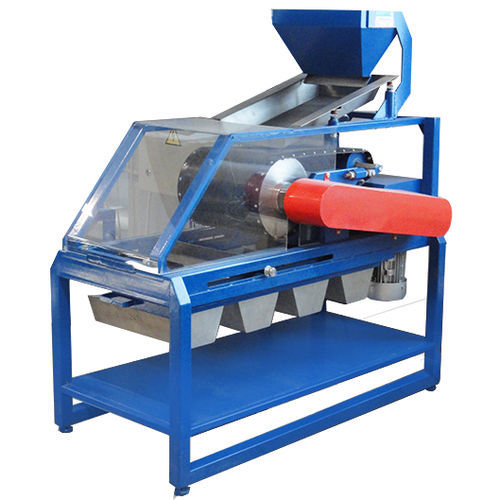

Sand separator RollMag

dry materialsmagnetic rollerfor ore

ERGA RollMag high intensity magnetic separator for dry mineral processing and high-quality cleaning of materials from weakly magnetic particles High intensity magnetic separators ERGA RollMag provide dry mineral processing and high-quality cleaning of materials from weakly magnetic particles. High quality separation Individually selected RollMag 1, 2, 3 models for one-, two- or three-stage separation with corresponding number of magnetic rolls guarantee high-quality processing of both nonmagnetic (quartz sands, feldspar, kaolin raw materials, semolina, etc.), and magnetic (titanium zirconium sand, chromite ore, manganese ores, etc.) materials. Highly efficient NdFeB magnetic system Unique patented magnetic system provides increased magnetic intensity on the operating surface up to 1.7 T (17000 G) without power consumption for magnetic field generation, unlike electromagnetic analogs. Easy assembly and operation The control systems in magnetic separators of RollMag 1, 2, 3 series are optimized for easy setting of equipment operating modes. ERGA RollMag can be connected to aspiration systems for dust removal. Special thin Kevlar belts with self-tensioning and alignment system can be quickly installed or replaced in just 5 minutes.
