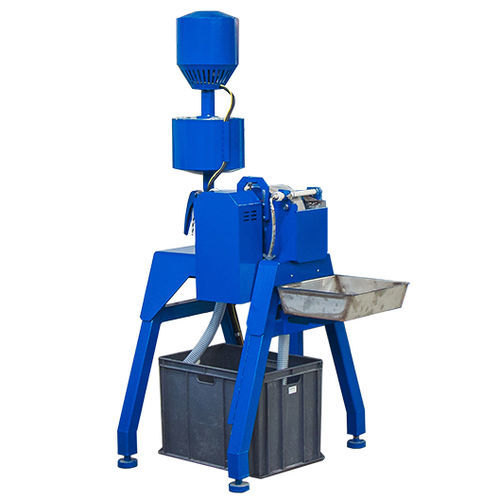

Wet separator WetMag

liquidsmagnetic drumlaboratory

Modification of ERGA WetMag magnetic drum separator for studying applicability of wet separation processes for ores and nonmetallic materials and conducting scientific research in industrial and university laboratories. - Permanent magnetic system with intensity up to 900 mT: Depending on the specifics of magnetic separation tasks, WetMag separators are equipped with various types of magnetic systems, including systems based on powerful rare-earth magnets with magnetic intensity up to 900 mT (9 000 Gs). - Wide range of separation settings: WetMag separator has adjustable magnetic intensity on the drum face, magnetic system position, operating gap and drum speed. The system of slurry flow control using a disc valve allows you to vary the performance of the process. - Automatic cleaning: Cleaning of raw materials from magnetic impurities is in automatic mode with a flush nozzle and with minimum personnel involvement. Continuous automatic removal of magnetic inclusions improves separation quality and efficiency. - Customized selection of equipment: WetMag models are produced with different types of baths for operation in concurrent, countercurrent or semi-countercurrent modes for optimum concentration of ore and nonmetallic materials of various sizes and magnetic susceptibility. For laboratory research the drum diameter of the wet separator can be 150, 250, 400 mm; for pilot tests - 600, 900 mm. Operating length of the drum is selected depending on the design capacity. - Compact and mobile - Easy to operate and maintain
