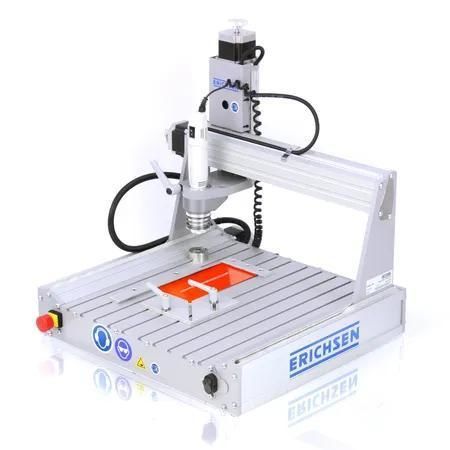

3-axis milling machine CORROCUTTER Smart 638universalbench-topindustrial
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Structure
- bench-top
- Applications
- industrial
- Other characteristics
- automatic, portable, with electronic control
- Associated function
- cutting
- X travel
Min.: 75 mm
(2.95 in)Max.: 210 mm
(8.27 in)- Y travel
Min.: 102 mm
(4.02 in)Max.: 300 mm
(11.81 in)
Description
The CORROCUTTER Smart 638 is an automatic sample milling machine for standard-conform defined cut 'scribe' line application on coated test panels for corrosion testing. It is a tabletop unit with an electromotive drive, programmable process and excellent repeatability.
Overview
The unit provides programmable milling/cutting with a comfortable Windows control software (OS from Windows 7). Software version V1.6 offers extended functions including more selectable and freely definable milling patterns, the possibility to place the corrosion groove closer to sample edges, and automatic scaling of existing milling patterns to changed sample sizes. The software and a USB 2.0 cable are included in the scope of supply.
Purpose and application
For standard-conform corrosion testing, a defined cut ('scribe') line is required on coated test panels. While many users apply this cut manually, standards increasingly prescribe use of a milling machine or rotating saw. The CORROCUTTER Smart 638 offers advantages over rotating saw blades in handling and, due to its programmable process and excellent repeatability, is suitable for users who need a repeatable, machine-based solution.
Scope of delivery
Standards
Characteristics / Technical specifications
Overview
The unit provides programmable milling/cutting with a comfortable Windows control software (OS from Windows 7). Software version V1.6 offers extended functions including more selectable and freely definable milling patterns, the possibility to place the corrosion groove closer to sample edges, and automatic scaling of existing milling patterns to changed sample sizes. The software and a USB 2.0 cable are included in the scope of supply.
Purpose and application
For standard-conform corrosion testing, a defined cut ('scribe') line is required on coated test panels. While many users apply this cut manually, standards increasingly prescribe use of a milling machine or rotating saw. The CORROCUTTER Smart 638 offers advantages over rotating saw blades in handling and, due to its programmable process and excellent repeatability, is suitable for users who need a repeatable, machine-based solution.
Scope of delivery
- Automatic sample cutter CORROCUTTER Smart 638
- Drill bits 1.5 mm & 2.0 mm
- Software (control software, incl. USB cable)
- USB cable 2.0
Standards
- DIN EN ISO 17872
- DIN EN ISO 12944-6
Characteristics / Technical specifications
- Model / Order number: CORROCUTTER Smart 638 — Order number: 03310131
- Dimensions (L × W × H): approx. 550 × 460 × 520 mm
- Net weight: approx. 13 kg
- Unit type: Portable (tabletop)
- Dimensions sample plate: max. 210 × 300 mm (DIN A4); min. 75 × 102 mm
- Mains connection (table power supply): 100–240 VAC, 47–63 Hz
- Drive: electromotive drive ensuring constant feed motion of the cutting tool
- Control software: Windows-based control software (OS from Windows 7); software V1.6 with extended, freely definable milling patterns and automatic scaling; extended software compatible with previously delivered systems
- Included accessories: drill bits (1.5 mm & 2.0 mm) and USB 2.0 cable
