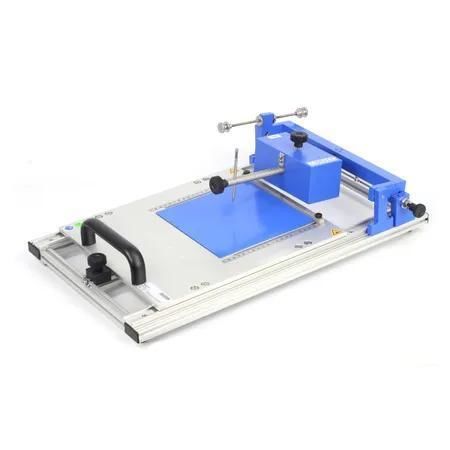

Sample preparation scratching tool CORROCUTTER 639

The CORROCUTTER 639 is a bench-top scratching tool for producing defined and reproducible scratches on coated test sheets for corrosion testing. It reduces physical strain on the user's fingers and wrists when performing many scratches and supports common scratch profiles (Van Laar, Clemen, Sikkens).

Design
The CORROCUTTER 639 is a desk-top unit with a slide carriage equipped with a linear guide (sliding bearing); the slide carriage is moved manually.

Scope of delivery

• CORROCUTTER 639
• Test tip acc. to van Laar
• Relocatable supporting weight
• Spirit level
• Allen key SW 2

Standards

• DIN 53 167
• VDA 621-414
• VDA 621-415
• ECCA T8
• DIN ISO 4623

Characteristics / Technical specifications

• Order number: 02450131
• Weight: approx. 15 kg
• Testing / scratching force: approx. 2-40 N
• Scratch length: max. approx. 220 mm
• Scratch profile: Van Laar, Clemen, Sikkens
• Dimensions (L x W x H): 600 x 400 x 160 mm
• Max. dimensions of sample panels: approx. 300 x 200 x 20 mm
• Max. dimensions of sample panels using cross-scoring template: approx. 270 x 270 x 20 mm
• Max. dimensions of sample panels using St. Andrew's cross template: approx. 297 x 210 x 20 mm
