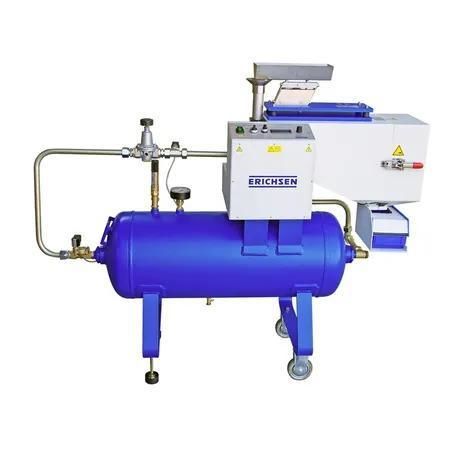

Stone hammer blow testing machine 508 SAE

semi-automaticmotorizedpaint

Technical description
The MULTI GRIT TESTER 508 SAE is a stone‑chip testing device designed for reproducible and comparable test results. Test specimens are impacted with defined grit (according to ASTM D 3170) accelerated by compressed air. The unit is equipped with an adjustable vibration feeder for automatic delivery of the blasting media and a pressure reservoir to compensate fluctuations in the external compressed air network. A multifunction display shows working pressure, test time, vibration feeder setting and total/temporary test counters.

Purpose and application
The MULTI GRIT TESTER 508 SAE is intended for laboratory and production control to evaluate coating and substrate resistance to gravel/stone impact; it features an adjustable impact angle compared with the VDA version.

Test principle
A defined number of shot particles with specified properties strike the specimen within a selectable time interval with defined energy under an adjustable impact angle.

Scope of delivery

• MULTI GRIT TESTER 508 SAE including specimen clamping device with adjustable impact angle
• 1 kg blasting media (grit)
• Operating manual

Standards

• SAE J 400
• ASTM D 3170

Characteristics / Technical specifications

• Drive: electropneumatic
• Display: 8-digit backlit LCD, digit height 11.5 mm
• Dimensions: approx. 1600 × 500 × 1250 mm (W × D × H)
• Pressure sensor: 0–6 bar, accuracy 0.5% of full scale
• Net weight: approx. 100 kg
• Power supply: 85–264 VAC / 47–63 Hz (control voltage 24 V)
• Blasting media: grit (according to ASTM D 3170)
• Compressed air connection: min. 8 bar / max. 10 bar, hose inner diameter 19 mm required
• Fill pressure limit: 7.8 bar overpressure (factory set)
• Abrasive feed time: (4–30) s
• Portable / stationary: stationary
