Data analysis system GRITSCAN

sampleautomaticcamera-based

Description

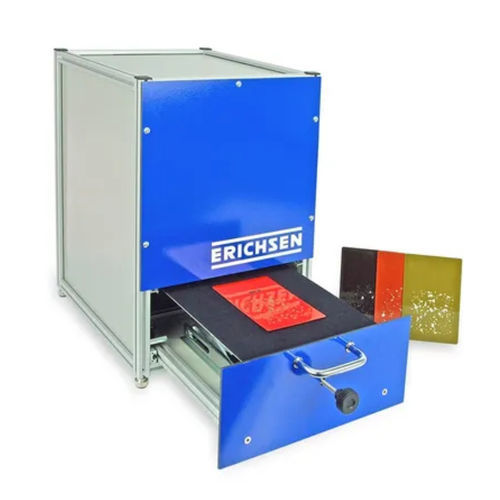

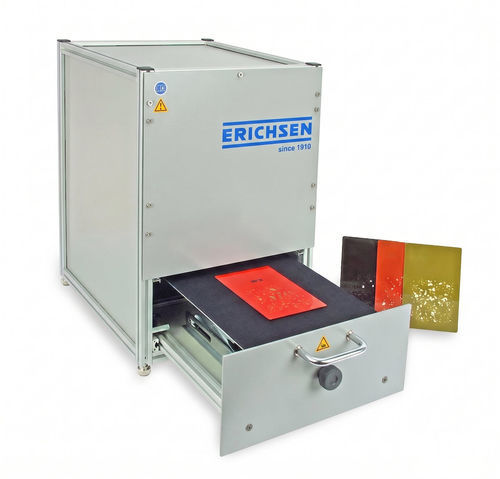

The surface analysis system GRITSCAN is a combined hardware and software solution for automatic evaluation of flat impact patterns; connectable via USB cable to standard laptops/PCs (to be provided by the user). The device is intended for the assessment of stone chip resistance according to EN ISO 20567-1. Results are displayed as rating values (0 - 5) in accordance with EN ISO 20567-1 (pages 11-13). Image analysis is performed according to EN ISO 21227-2 Annex A.

Function and evaluation
GRITSCAN provides automatic evaluation and documentation of impact patterns. The specially developed LED illumination allows analysis across different contrast levels. Evaluation parameters can be easily adjusted by the user to match test requirements. Results are delivered together with the corresponding images in PDF format.

Standard delivered values

• Affected area in %
• Number of impacts
• Rating value 0 - 5 in 0.1 steps

Advantages compared to software-only solutions

• Hardware control fully integrated into the software (no switching between devices required)
• Images are automatically inserted into the software (no manual image import required)
• Automatic test report generation

Delivery contents

• GRITSCAN hardware and software (USB stick)
• USB 3.0 A/B cable
• Power supply with Euro cable
• Insert strips for samples > DIN A5
• Calibration plate for standard calibration
• Calibration foil for sample thickness up to 30 mm
• User manual

Standards

• EN ISO 20567-1
• EN ISO 21227-2 Annex A

Features / technical specifications

• Order number: 24850131
• Model: GRITSCAN
• Weight: approx. 12 kg
• Power supply: 100 - 240 V AC, 50/60 Hz
• Max. sample thickness: 30 mm (flat)
• Max. sample size: 210 x 300 x 30 mm
• Dimensions (external): approx. 320 x 420 x 575 mm (W x D x H)
• Portable / Stationary: Stationary
• System requirements: i5 processor or equivalent; PC connection USB 3.0; OS from Windows 7 (32/64 bit); 8 GB RAM; minimum monitor resolution 1280 x 800 px
• Standard sample size: 150 x 100 x 1 mm
