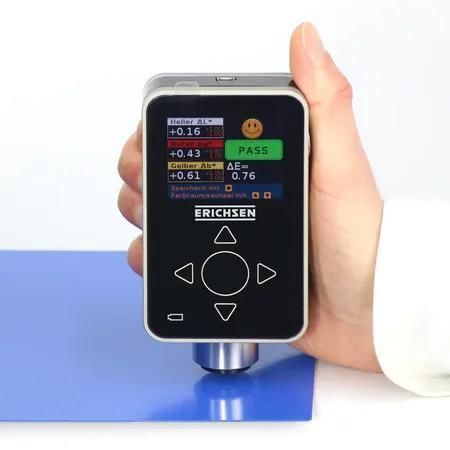

LED spectrophotometer ColorRanger 580-CG

reflectanceUSBportable

Product description Compact portable solution for color and gloss measurement according to DIN 5033 and DIN EN ISO 2813. 45°/0° measurement geometry for color and a 60° measurement head for gloss. PTB-certified white and gloss standards included. Machined from a solid aluminium block, the instrument weighs only 270 g and performs spectral scans in 3.5 nm steps with a total measurement time under 1 second. High-contrast O-LED color display for easy reading. The 45°/0° measurements correspond to human visual perception.

Advantages

• Combined 45°/0° color measurement and 60° gloss measurement
• Long-life, powerful LED light source
• Intuitive user interface for straightforward operation
• Storage for 1000 standards and 350 sample photos

Description This compact spectrophotometer offers state-of-the-art technology. Despite its small size it delivers high resolution, rapid measurement cycles and a clear menu structure to ensure fast, repeatable and error-free measurements. The sample is illuminated at 45° by a direct light source and reflected light is measured at 0°, giving results that align with the human visual impression.

Applications

• Color measurement for incoming/outgoing goods control in QM systems according to DIN EN ISO 9000
• Objective quality control of product color
• Color difference checks against a reference standard

Delivery contents

• Spectrophotometer and gloss meter ColorRanger 580-CG
  • 45°/0° & 60° measurement head
• Built-in rechargeable lithium-polymer battery – 3.7 V / 1320 mAh
• Power supply 100-240 V, 50-60 Hz AC
• USB cable
• PTB white standard with certificate
• Gloss standard
• Declaration of conformity
• User manual
• Softcase

Technical specifications

• Display: High-resolution O-LED color display, 1/4 VGA, 320 x 240 pixels
• Weight: 270 g with battery
• Memory: Storage for 1000 standard colors; 1000 color values; 300 spectra (400-700 nm / 3.5 nm); 350 sample photos (160 x 120 pixels)
• Measurement time: Complete cycle including calculation and readout < 1 s
• Measurement spot: 3.5 mm
• Color spaces: XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab; reflectance curve with cursor/nm and % display; CIE L*a*b* chart with tolerance limits
• Dimensions: 120 mm x 70 mm x 32 mm
• Light source: White and blue LEDs – lifetime > 20 years
• Gloss measurement: 60° according to DIN EN ISO 2813 (former DIN 67530)
• Calibration: With PTB-certified white standard; optional 2-step calibration with working standard
• Measurement geometry: 45°/0° according to DIN 5033
• Repeat measurements: Averaging of 1 to 20 individual measurements; statistical output with color values and standard deviation
• Power supply: Lithium-polymer battery; operating time > 15 hours; charge time 1.5 hours
• Sample photos: 350 color photos for locating the measurement point – resolution: 160 x 120 pixels
• Additional color values: Contrast: LRV - BS 8493:2008, various whiteness/yellowness values, gray index
• PC interfaces: USB 2.0 / 3.0
• Reproducibility: < 0.03 ΔE CIELab
• Ambient temperature: 15 °C to 45 °C
• Spectral resolution: Holographic grating spectrometer FWHM at 500 nm < 10 nm; measurement in 3.5 nm steps; 115 x 16-bit values per measurement
• Standard illuminants: D65, D55, D50, A, C, F11
• Standard color management: Load standards with best-match tool; load by index number or name
• Relative humidity: max. 85% non-condensing
• Spectral range/wavelength: 400 nm to 700 nm
• Spectral light source measurement: Measurement of chromaticity coordinates and spectrum of light sources (optional)
• Quality control tolerance limits: ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh; Min/Max, PASS/FAIL, ΔECMC (1:1 and 1:2), CIE ΔE94, ΔE2000; metamerism index for D65/A and D65/F11 according to DIN 6172
