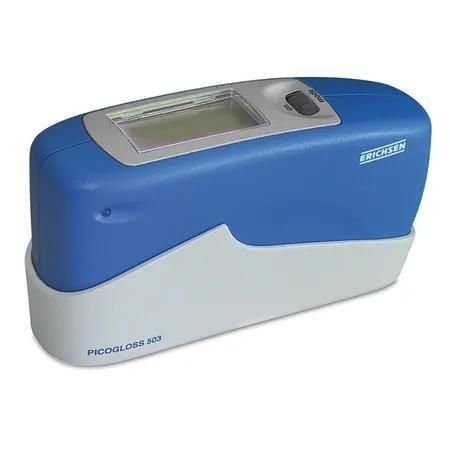

Three-angle glossmeter PICOGLOSS 503

portabledigitalwith data output

Description
Consistent surface quality during production and processing of coated or treated materials (e.g. paper, plastics, metal or wood surfaces) is critical. Variations in gloss can arise from manufacturing defects, supplier changes or material fluctuations and often lead to quality control non-conformities or rejections. The PICOGLOSS 503 provides an objective, reliable gloss assessment.

Design and function
The PICOGLOSS 503 is a compact, portable 3-angle gloss meter with measurement geometries 20°, 60° and 85° for standards-compliant measurements according to DIN, ISO, ASTM, BS and JIS in high-gloss, mid-gloss and matt-gloss ranges. Operation via scroll wheel and color display; measurement triggered by a side-mounted measurement button. Automatic switch to specular gloss measurement for highly reflective surfaces. Integrated USB (Mini) for data export and optional power from PC. Device locks into a readiness holder that contains the calibration standard "A".

Menu
The menu can be switched to multiple languages:

• German
• English
• French
• Spanish
• Italian
• Japanese
• Portuguese
• Russian

Display
High-contrast LCD shows measurement and calibration values as well as mode, messages and prompts.

Calibration and self-test
Only one calibration standard is required. Calibration routine runs automatically at key press; the calibration value is stored in the device. On power-up a self-test of approx. 2 seconds runs, assessing also the condition of the calibration standard and displaying cleaning recommendations if necessary.

Specular gloss (automatic switching)

• 20°: 0 - 2000 GE
• 60°: 0 - 1000 GE
• 85°: 0 - 160 GE

(GE = gloss units)

Continuous measurement
Displays current value, mean value and minimum/maximum values during continuous measurements.

Analysis software
The "smart-lab Gloss" software for data transfer for memory readout or online measurement with preformatted test report is available for free download.

Statistics
In statistic mode several (2 - 99) measurements per sample can be taken and statistically evaluated. Results can be saved and compared with a reference. Display selectable in three columns:

• current value, mean, min/max value
• range, standard deviation, difference
• Pass / Fail (within/outside tolerance vs. reference)

Accuracy

• Range: 0 - 99.9 GE
  • Repeatability: 0.2 GE
  • Comparability: 0.5 GE
• Range: 100 - 2000 GE
  • Repeatability: 0.2 %
  • Comparability: 0.5 %

(GE = gloss units)

Scope of delivery

• PICOGLOSS 503
• Holder with integrated gloss standard A
• USB cable
• Wrist strap
• Battery
• Carrying case
• Calibration certificate
• Quick guide / safety instructions (full manual available for download)

Standards

• ISO 2813
• ISO 7668
• ASTM D 523
• ASTM D 2457
• DIN 67530
• JIS Z8741

Technical specifications

• Memory: 999 measurements with date and time in up to 50 memory areas
• Dimensions: 48 mm x 155 mm x 73 mm (W x L x H)
• Weight (net): approx. 400 g
• Power supply: 1.5 V AA alkaline battery (approx. 10,000 measurements) or via USB connection to PC
• Difference measurement: storage for 50 references
• Portable / Stationary: Portable
