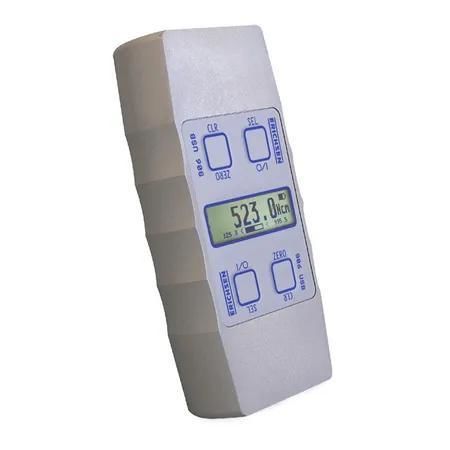

Portable force gauge and torque meter PHYSIMETER® 906

digitalbattery-poweredwith external sensor

Description
The PHYSIMETER® 906 USB is a handheld measuring device for recording mechanical variables using strain gauge (DMS) sensors. Two versions are available: an integrated force transducer variant and a version for connection to an external sensor. Power is supplied by three micro-batteries (type LR03) or by the included plug-in power supply. Data transfer to a PC is via USB (USB cable included). Measurement and evaluation software PHYSISOFT 906 USB is available as a free download.

Technical data

• Weight: approx. 500 g
• Accuracy: 0.2 % of final value
• Interface: USB
• Peak memory: max. and min. values
• Digit height: 10 mm
• Current consumption: approx. 130 mA (sensor with 1000 Ω bridge); approx. 150 mA (sensor with 350 Ω bridge)
• External supply: plug-in power pack 115 V/230 V; 50/60 Hz, alternatively PC via USB
• Measured value: Force
• Battery operation: 3 × LR03 alkaline; at 1400 mA approx. 8 h (1000 Ω), approx. 5 h (350 Ω)
• Load introduction: female thread M6
• Overload capacity:
• Display resolution: ≥1000 digits (from 10% of measuring range)
• Effective direction: Tension/Compression
• Measuring principle: Strain gauge (DMS)
• Operating temperature: +5 °C to +35 °C
• Reference temperature: (21 ± 2) °C
• Dimensions (L x W x H): 150 x 69 x 33 mm (without sensor load-introduction pin)
• Fixing bore in housing: 2 × M6 (distance 35 mm)
• Display rate for mean value: approx. 2 Hz
• Sampling rate for peak value: approx. 1 kHz

Characteristics / Technical specifications

• Model: PHYSIMETER® 906 USB
• Weight: approx. 500 g
• Accuracy: 0.2 % of final value
• Interface: USB (cable included)
• Power: 3 × LR03 or plug-in power supply
• Display digit height: 10 mm
• Battery life: approx. 8 h (1000 Ω bridge) / approx. 5 h (350 Ω bridge)
• Load introduction: female thread M6
• Operating temperature range: +5 °C to +35 °C
• Dimensions: 150 x 69 x 33 mm
