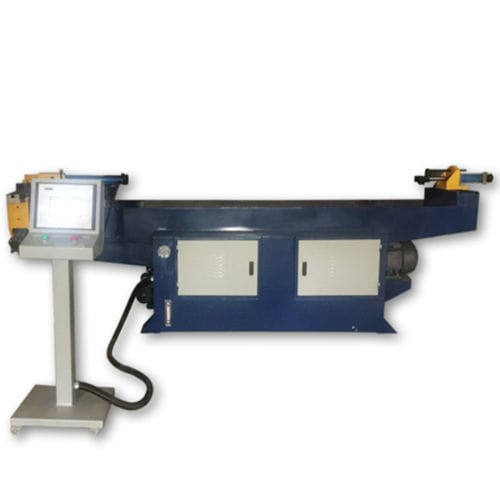

Hydraulic bending machine NCB seriessteel tubefor pipesNC
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- steel tube, for pipes
- Control
- NC
- Other characteristics
- mandrel
- Bending capacity
Max.: 168 mm
(6.61 in)Min.: 18 mm
(0.71 in)- Bending radius
Max.: 850 mm
(33.46 in)Min.: 20 mm
(0.79 in)- Bending length
Max.: 4,850 mm
(191 in)Min.: 2,000 mm
(79 in)- Overall length
Max.: 6,300 mm
(248 in)Min.: 2,300 mm
(91 in)- Overall width
Max.: 2,450 mm
(96 in)Min.: 550 mm
(22 in)- Total height
Max.: 1,500 mm
(59 in)Min.: 1,300 mm
(51 in)- Weight
Max.: 12,000 kg
(26,455 lb)Min.: 500 kg
(1,102 lb)- Total power
Max.: 22 kW
(29.9 hp)Min.: 2.2 kW
(3 hp)
Description
1. PLC control, easy to set programs and operate .
2. Slowly returning of mandrel , make good shape and appearance of the angle .
3. Rotating is controlled by servo-motor, more precise .
4. Memory 100 sets records with each record setting 20 auto rotating and bending angles .
5. Moveable control platform with touch-screen , more convenient .
6. Mistakes self-checking on the screen , help to solve problem immediately .
7. Key parts use the imported brands .
8. Hydraulic power, processing more smoothly .
9. Die material use high quality steel, hardness high and long life use, the hardness not below HRC50; dies including bending die, clamping die, crease resistant die, guide die, Wiper Die(Optional), Ball Mandrel(Optional).
