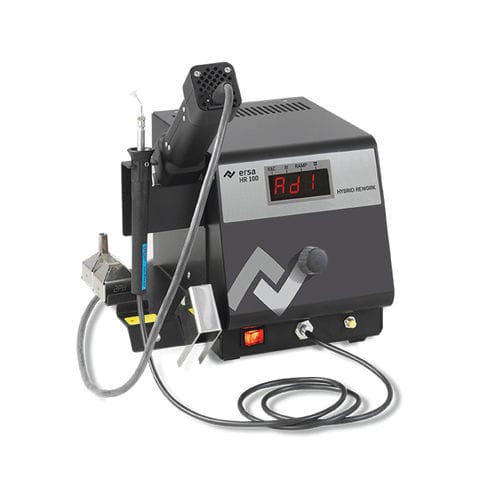

Hot air rework station HR 100

automaticfor SMD

The Rework System HR 100 uses the revolutionary and patented Ersa Hybrid Rework technology to safely desolder and replace small SMDs. The medium wave IR radiation combined with a gentle hot air jet guarantees optimal energy transfer to the component. Patented hybrid rework technology (combination of IR heating technology and convection) for safe desoldering and soldering Optimum energy transfer and gentle heating of chip components 0201 up to 20 x 20 mm SMDs No blowing away of neighbouring components Optionally available with stand, 800 W IR bottom heating and PCB intake Optional mit Stativ, 800 W IR-Untenheizung und Leiterplatten-Aufnahme Vac Pen for safe handling of devices Operation software IRSoft The Technology of Ersa Rework Systems sustainably secures the added value of electronics: gentle heating technology sensor guided soldering processes contactless residual solder removal precise component placement complete process documentation clear user guidance Dimensions (W x D x H) in mm: 211 x 220 x 168 Weight in kg: 4.5 Antistatic Design (y/n): yes Power Rating in W: 200 Nominal voltage in V AC: 230 Upper heating: 200 W (Hybrid Tool) Component size in mm: 1 x 1 bis 20 x 20 Operation: One-touch operating button or Windows PC Test symbol: CE Hybrid Tool Length in mm: Supply 1,350 Weight in kg: 0.3 Power Rating in W: 200 Antistatic Design (y/n): yes HP 100 Heating Plate with Stand Dimensions (W x D x H) in mm: 200 x 260 x 53,5 Weight in kg: 2,5 Antistatic Design (y/n): yes Power Rating in W: 800
