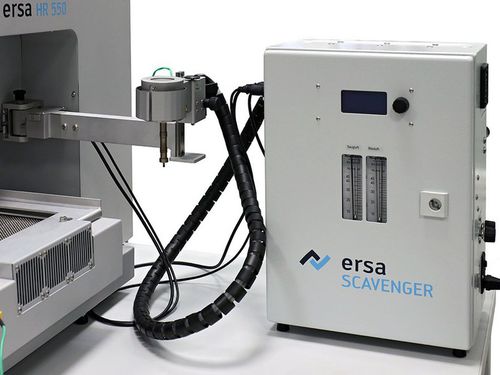

Automatic rework station Ersa Scavenger

for PCB

... for the Ersa HR 550 and HR 550 XL rework systems. With the Ersa Scavenger, both rework systems can additionally be equipped with non-contact residual solder extraction. High-quality 400 W hot gas/vacuum cartridge in suction head Spacious solder collecting tank Process gas cleaning Integration possible in HR 550 or HR 550 XL Process control via HRSoft 2 and clearly arranged operating elements The Technology of Ersa Rework-Systeme sustainably secures the added value of electronics: gentle heating technology sensor guided soldering processes contactless residual solder removal precise component placement complete process documentation clear user guidance Dimensions (W x D x H) in mm: 300 x 210 x 420 mm Dimensions: required table space approx. 600 x 500 mm Weight in kg: 18,5 Antistatic Design (y/n): yes Power Rating in W: 400 Nominal voltage in V AC: 230 Upper heating: hot gas Compressed air connection: 60 l/min at 6 bar, oil free, quick coupling ¼ inch Component size in mm: all common SMD pad formats Operation: set elements and HRSoft 2 Test symbol: CE
