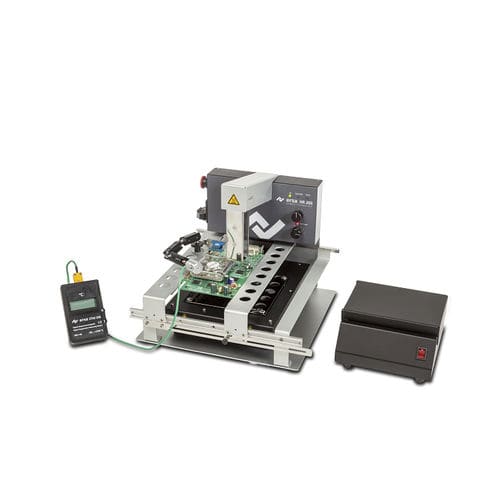

Automatic rework station HR 200

for SMD

Unpack, set up, solder! Rework can be this easy today. The compact HR 200 system for rework applications "out of the box" convinces professionals and beginners with simple setup and intuitive operation. On board: 300 W hybrid high-performance heating element, with which SMT components up to 30 x 30 mm can be soldered in and out. Highly efficient 400 W hybrid heating head Optional with 800 W IR-bottom heating Very short soldering times feasibel Activation with safety foot switch Operation LEDs on the system Intuitive operation without software The Technology of Ersa Rework-Systeme sustainably secures the added value of electronics: gentle heating technology sensor guided soldering processes contactless residual solder removal precise component placement complete process documentation clear user guidance Dimensions (W x D x H) in mm 300 x 300 x 280 Weight in kg 3,7 Antistatic Design (y/n) y Power Rating in W 400 + 800 Nominal voltage in V AC 230 Upper heating Hybrid emitter 400 W, 30 x 30 mm Lower heating IR emitter 800 W, 150 x 150 mm PCB size in mm from 20 x 20 to 215 x 300 (+x) Component size in mm from 1 x 1 to 30 x 30 Test symbol CE
