Disintegration tester ZT 120 light

automaticmaterialsindustrial

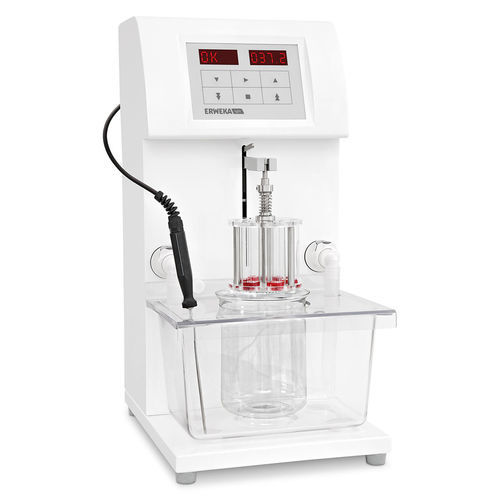

The ERWEKA ZT 120 light series is the perfect entry-level disintegration tester with one or two motor driven USP/EP/JP compliant test station. The compact unit of our light series is equipped with an integrated flow-through heater and a moulded one-piece PET water bath (no leaking / breaking, easy to clean) with cover. The ZT 120 light series can be easily operated via a membrane keypad. Defined test run parameters such as run time and water bath temperature are entered with symbol keys and the actual values are then shown on large and bright LED displays. The run-time counter automatically starts as soon as the basket rack assembly is lowered into the test media. 100 % USP / EP / JP compliant As all ERWEKA products, the ZT 120 light series is 100 % USP/EP/JP compliant. Compact entry-level device The ZT 120 light series is the perfect entry-level disintegration tester with one or two motor driven USP/EP/JP compliant test station. Easy control via a large LED display For entering of nominal bath temperature and required run time. Specifications 1 or two test stations, driven by a single motor 30 ± 1 strokes/min. 55 ± 2 mm stroke height Function keys and 2x LED display for entering nominal bath temperature and required run-time Starts/stops to counting run-time automatically when basket rack is lowered Integrated flow-through heating system (accuracy ± 0.2 °C) Temperature range 30 - 50 °C Run time up to 9 h, 59 min, 59 s ± 1 s Manual lift-in and -out of the baskets
