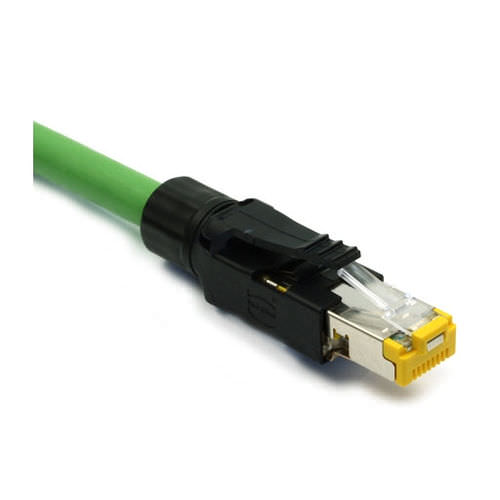

Data connector STE-HART-09451511560
RJ45Ethernetstraight

data connector
data connector
Add to favorites
Compare this product

Characteristics

Type
data
Format
RJ45, Ethernet
Shape
straight
Other characteristics
IEC, insulation-displacement, ISO, category 6
Field
for industrial networks
Data rate

Max.: 100,000 MB/s

Min.: 10 MB/s

Description

RJ45 Ethernet data connector designed for industrial use, 8-pin, CAT 6 for solid and flexible conductors. Technical data: RJ45 according to IEC 60 603-7 8-pin conduction class: class 6, class EA, suitable for 1/10 Gigabit Ethernet conduction features: class 6, class EA, up to 500 MHz according to ISO/IEC 11 801:2002, EN 50 173-1 transmission rate: 10/100 Mbits and 1/10 Gbits fully shielded M 12 x 1 temperature range - 40 to + 70C° Suitable for wires: strand AWG 27 to 22 (solid/flexible) diameter of the conductor: max. 1.6 mm (including isolation) outer diameter of the cable: 4.5 to 9.00 mm straight version) - 4.5 to 8 mm (45°angled version) conductor connection by IDC-contacts, tool-free mating cycles: as many as 750 IP20
