Projected capacitive touchscreen monitor ERGO series

multi-touch screenwith PCT touch screenindustrial

Overview

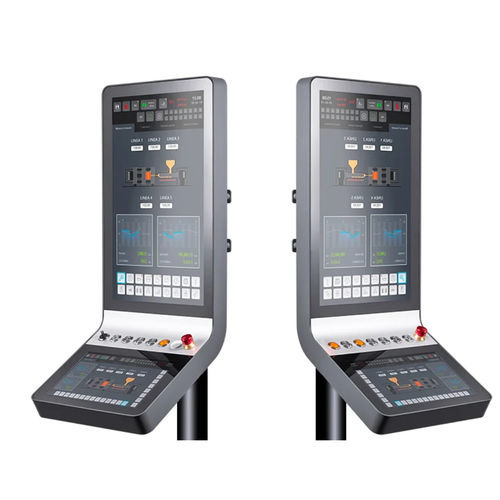

The ERGO MONITOR 120 is an industrial operator station integrating a 21.5” projected capacitive multi‑touch display designed for machine control in portrait mounting. It supports up to eight 22 mm control elements and an optional 12.1” secondary touch keyboard.

Product family
ERGO Monitor series: integrated monitor with optional keyboard extension and configurable control modules for industrial HMI applications.

Key features

• Main display: 21.5” true flat projected capacitive multi‑touch, 1920×1080, 300 cd/m², 5000:1 contrast
• Optional second display: 12.1” true flat projected capacitive multi‑touch, 1280×800, 400 cd/m²
• Supports portrait and landscape mounting; VESA 100 for portrait mode

• Up to 8 × 22 mm push‑button/extensions (switches, emergency stop, USB, RFID etc.)
• Monitor/PC variants with DVI, VGA, HDMI or DP outputs and USB‑B for touch control
• IP65 front protection; operating temperature 0…+50 °C; storage −20…+65 °C

Connectivity & expansion

• Ethernet: dual 1 Gb RJ45 (depending on CPU/module)
• USB: rear USB 2.0/3.0 ports and USB‑B for touch interface
• Video: DVI, VGA, HDMI or DisplayPort depending on selected CPU/module

Technical specifications (summary)

• Power supply: 15–36 VDC (PC variants) or 18–30 VDC (monitor variants)
• Typical consumption: ~40 W (monitor) or 45–50 W (PC base) + up to 24 W for display keyboard
• Protection: IP65 (front); Certifications: CE
• Storage/Drives: HDD ≥ 500 GB or SSD ≥ 128 GB (configurable)

Configurations & options

• Multiple fanless CPU options: Celeron J1900 / J3455E / J6412; Intel Core i3 / i5 / i7 families
• RAM: from on‑board 4 GB up to 32 GB depending on CPU
• Display keyboard: 12.1” capacitive HMI keyboard with HTML5 browser support

Applications & notes

• Designed for industrial HMI, machine control panels, operator stations and embedded automation systems
• Product supports portrait and landscape mounting; configurable I/O and CPU options to match application requirements
