TFT monitor ERGO series

multitouch screencapacitive touch screenLED backlight

Product overview

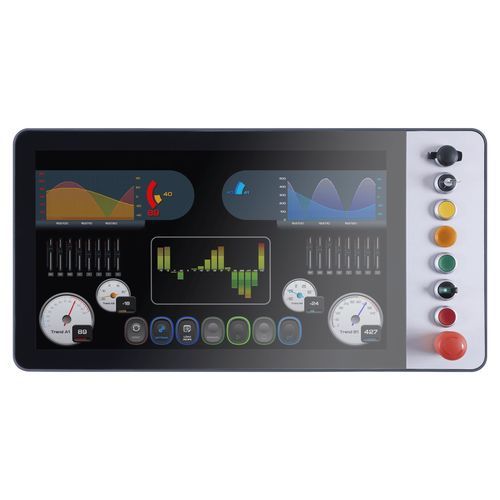

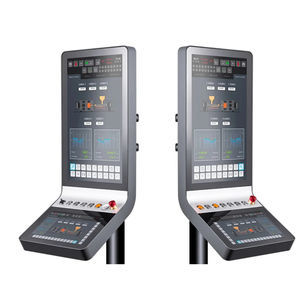

Monitor for machine control station. The ERGO station offers the highest level of machine control, ergonomics, and customization. The flat version can be mounted on the machine in both landscape and portrait modes and can accommodate up to 8 control and display elements.

Features

• 21.5” display with flat capacitive multi-touch screen
• Web page display through full screen browser
• Standard mechanical input/output buttons 22 mm
• Monitor board with DVI and VGA video outputs
• USB-B output for touch control
• Mounting system with standard VESA 100 attachment in both landscape and portrait modes

Models comparison (table)
MODEL | PC Control ERGO222 | Monitor ERGO322
| PC Control ERGO222 | Monitor ERGO322
| ◊ Touch Capacitive | ◊ Touch Capacitive
| ◊ Full Glass | ◊ Full Glass
Versions | ◊ Dual Touch Capacitive 120° | ◊ Dual Touch Capacitive 120° + Keyboard Touch
| + Keyboard Touch | ◊ Dual Touch Capacitive 120° + 12"
| ◊ Dual Touch Capacitive 120° | HMI Touch
| + 12" HMI Touch |

General / Display & mechanical
Bezel / Chassis | Aluminum /Sheet Steel | Aluminum /Sheet Steel
Mounting | Portrait | Landscape | Portrait | Landscape
VESA | VESA 100 | VESA 100

Power & consumption
Power Supply (Vdc) | 15...36 VDC (for PC Control ERGO222) | 18...30 VDC (for Monitor ERGO322)
Consumption (W) | 45 - 50 W for PC base + 24W for display keyboard (if any) | 40W for monitor + 24W for display keyboard (if any)

Environmental
Operating Temperature (°C) | 0 … + 50 (non condensing) | 0 … + 50 (non condensing)
Storage Temperature (°C) | -20 … + 65 | -20 … + 65
Humidity | 90% (non condensing) | 90% (non condensing)
Protection degree (all) | IP65 | IP65
Certifications | CE | CE

Display characteristics
Display Size 1 | 21.5” true flat multi-touch screen | 21.5” true flat multi-touch screen
Display Technology | TFT / 16,7 M colors / LED backlight | TFT / 16,7 M colors/ LED backlight
Display Brightness (cd/m²) | 300 | 300
Contrast | 5000:1 | 5000:1
Viewing Angle H-V | 89/89/89/89 | 89/89/89/89
Display Resolution (pixel) | 1920x1080 | 1920x1080
Backlight life (hours) | 50K | 50K
Touch Technology | Capacitive | Capacitive

Video & inputs
Video input | (PC Control ERGO222) [see CPU variants for outputs] | DVI + VGA (Monitor ERGO322)
VGA/DP (Celeron J1900) | 1x / 1x (DP passive cable required) | –
J1345/i3/i5/i7 | 1 x VGA | –
J6412/i3-1115/i7-1165 | 2x HDMI | –

Operating systems
Operating systems (PC Control ERGO222) | Windows7 - Windows10 - WES7 | (Monitor ERGO322: not specified)

CPU & performance options (PC Control ERGO222 column)
CPU Fanless Celeron 4G | Quad core J1900 2,0 GHz (2,42GHz) – 10W
CPU Fanless Celeron 6G | Quad core J3455E 1,5 GHz (2,30 GHz) – 10W
CPU Fanless Intel Core 7G | Intel Core i3-7100U 2,46GHz / i5-7300U / i7-7600U 2,8GHz – 15W
CPU Fanless (newer options) | Celeron J6412 – 2,0 (2,6) GHz; Intel Core i3-1115G4 1,7 (4,1) GHz; Intel Core i7-1165G7 2,8 (4,8) GHz

Memory & storage
RAM (Celeron quad core J1900) | on board 4GB DDR3L 1066/1333MHz - dual channel
RAM (Celeron quad Core J3455E) | Up to 8GB DDR3L 1866MHz
RAM (Fanless Intel Core 7G) | Up to 16GB DDR4 2133/1866 MHz 260 pin
RAM J6412/i3-1115/i7-1165 | 8GB up to 32GB
Drives (internal) | HDD min. 500GB / SSD min. 128GB

Communications & ports
RS232 / RS485 J1900 | 1x RS232 + 1x RS485
RS232 / RS485 J13455/i3/i5/i7 | 1x RS232/RS485
RS232 (other CPUs) | J6412/i3-1115/i7-1165
USB Ports 2.0/3.0 rear | 1x 2.0 + 1x 3.0 cpu J1900 / 2x2.0 + 2x3.1 CPU J3455E /J6412 4x 3.0 cpu Intel®Core™ | – rear 1x USB type B (monitor column)
Ethernet Celeron J1900 /J3455E | 2x 1Gb RJ45 Intel I210 / 2x1Gb RJ45 Intel I211AT
Ethernet i-Core™ i3/i5 G | 2x 1Gb RJ45 Intel I210AT/I219LM
Ethernet (J6412/i3-1115/i7-1165) | J6412 2 x 1GB Intel 225-V / i3-1115 / i7-1165 2x Intel GBE LAN Chip

Accessories / extensions
Push button extension | up to 8 x 22 mm standard push-buttons, switches, emergency button, USB, RFID etc. (specified for multiple columns)

Push-button / I/O extension table
Push button extension | up to 8 x 22 mm standard push-buttons, switches, emergency button, USB, RFID etc. | up to 8 x 22 mm standard push-buttons, switches, emergency button, USB, RFID, etc. | up to 8 x 22 mm standard push-buttons, switches, emergency button, USB, RFID etc.

Caractéristiques / spécifications techniques

• Product: ERGO Monitor Flat (industrial monitor for machine control stations)
• Display: 21.5” flat capacitive multi-touch, 1920x1080, TFT, LED backlight, 300 cd/m², 5000:1 contrast, 50k hours backlight life, viewing angle 89/89/89/89
• Touch: Capacitive (single or dual-touch variants incl. Dual Touch Capacitive 120° and keyboard touch options)
• Mechanical: Bezel in aluminum / chassis sheet steel; VESA 100 mounting, usable in portrait and landscape
• Protection: IP65 degree (whole product)
• Power supply: PC Control variants 15…36 VDC; Monitor variant 18…30 VDC
• Consumption: Example values – PC base 45–50 W + 24 W for display keyboard (if any); Monitor 40 W + 24 W for display keyboard (if any)
• Operating temperature: 0 … +50 °C (non-condensing); Storage: -20 … +65 °C; Humidity: up to 90% non-condensing
• Certifications: CE
• Video outputs/inputs: DVI + VGA for monitor versions; various VGA/DP/HDMI options depending on CPU/configuration
• OS support (PC Control models): Windows 7, Windows 10, WES7
• CPUs (configurable across models): J1900, J3455E, J6412, Intel Core i3/i5/i7 family (various generations and frequencies listed in table)
• RAM options: on-board 4GB (J1900), up to 8GB (J3455E), up to 16GB DDR4 (Intel Core 7G), up to 32GB for J6412/i3/i7 options (depending on CPU)
• Internal drives: HDD min. 500 GB or SSD min. 128 GB
• Serial: RS232 / RS485 configurations vary by CPU (examples: 1x RS232 + 1x RS485 for J1900; 1x RS232/RS485 for other CPU options)
• USB: combinations of USB 2.0 / 3.0 ports at rear depending on CPU; monitor column includes 1x USB Type B for touch control
• Ethernet: Dual 1Gb RJ45 (Intel NIC variants) depending on CPU selection
• Optional: push-button extension up to 8 x 22 mm standard components (push-buttons, switches, emergency, USB, RFID)
