TFT monitor ERGO series

projected capacitive touchscreenmulti-touch screencapacitive touch screen

Overview

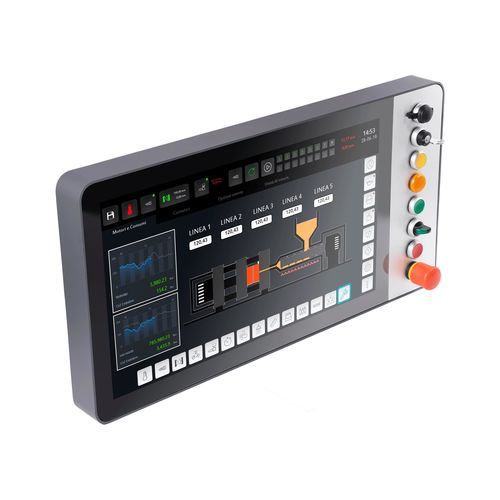

Flat all-in-one machine control station for industrial HMI applications. The ERGO IPC FLAT supports landscape and portrait mounting and accommodates up to eight control and display elements. Designed for use as an integrated panel PC or as a monitor with IP65 front protection.

Features

• Integrated HMI platform with full-screen browser visualization.
• Main display: 21.5" true flat capacitive projected multi-touch, 1920x1080, 300 cd/m², 50k h backlight life.
• Customizable layout with optional 12.1" soft-touch keyboard and additional 12.1" visual area.
• Standard 22 mm mechanical input/output buttons; expandable up to 8 push-button extensions.
• PC-based x86 (Intel Atom/Celeron/Core) or Linux i.MX6 ARM CPU options.
• VESA 100 mounting; easy installation in portrait or landscape; available flat or 120° ergonomic version.
• Front protection IP65; operating 0…+50 °C; storage -20…+65 °C; 90% non-condensing humidity.

Models / Comparison
PC Control ERGO222: PC-based control platform with various Intel CPU options and optional 12" HMI keyboard. Monitor ERGO322: monitor version with DVI/VGA inputs and optional keyboard touch. Key differences: ERGO222 targets embedded PC control and extended I/O; ERGO322 focuses on monitor use with display-centric interfaces.

General / Mechanical & Environmental
Bezel / Chassis: aluminum bezel / sheet steel chassis. Mounting: portrait and landscape. VESA: 100. Power Supply: PC Control 15–36 VDC; Monitor 18–30 VDC. Typical consumption: PC base 45–50 W (+24 W keyboard); Monitor 40 W (+24 W keyboard). Certifications: CE.

Display / Touch / Video
Display: 21.5" TFT LED 1920x1080, 300 cd/m², 5000:1 contrast, 50k hours backlight. Touch: capacitive projected multi-touch; full-glass option available. Video inputs depend on configuration (VGA/DP/HDMI/DVI as per CPU and model).

Computing / Interfaces
OS (PC Control): Windows 7 / Windows 10 / WES7; Linux available for ARM variants. CPU options include J1900, J3455, Celeron J6412 and Intel Core i3/i5/i7 fanless variants. Memory/storage: from onboard 4GB up to 32GB RAM; internal HDD/SSD options (HDD min. 500GB / SSD min. 128GB). I/O: multiple USB 2.0/3.0 ports, RS232/RS485 variants, dual Gigabit Ethernet, and configurable video outputs.

Push button extension
Up to 8 × 22 mm push-buttons, emergency stop, switches, USB, RFID and other I/O extensions for machine integration.

Technical specifications

• All-in-one platform supporting touchscreen UI and full-screen browser visualization.
• Main display: 21.5" multi-touch, 1920x1080, 300 cd/m², 5000:1 contrast, 50k h backlight life.
• Touch: capacitive projected multi-touch; full-glass option.
• Mechanical: aluminum bezel, sheet steel chassis, VESA 100; portrait and landscape installation.
• Protection & environment: IP65 front; operating 0…+50 °C; storage -20…+65 °C; 90% non-condensing.
• Power: PC Control 15–36 VDC; Monitor 18–30 VDC; typical consumption indicated above.
• OS support: Windows 7/10/WES7 and Linux for ARM CPUs.
• CPU choices: Atom/Celeron and Intel Core fanless options to match performance needs.
• Memory & storage: 4GB–32GB configurable; internal HDD/SSD options.
• I/O: USB, serial, Ethernet and various video outputs depending on configuration.
• Certifications: CE.
