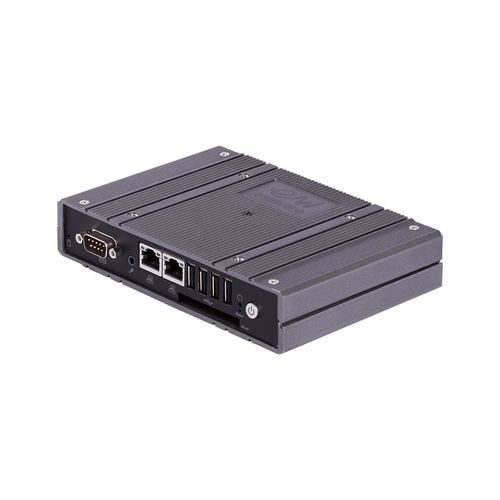

Box PC EW410 series

embeddedwall-mountedDIN rail

Product overview
Embedded box PC EW410 powered by low‑power modern processors. Ultra-compact, fanless design with extended operating temperature range and vibration resistance, suitable for industrial applications in harsh environments.

Features

• Ultra-compact size
• Fanless design
• Low-power modern processor options
• Flexible configuration (memory, storage, operating system)
• Extended operating temperature range

Available variants

• EW410NF6
• EW410NF2
• EW410NF73D000 (EW410NF7)

Technical specifications

• EW410NF6 / EW410NF2: Aluminium enclosure: heavy aluminium extrusion chassis; aluminium heat-sink; green power LED; ATX/APO selection via BIOS; on/off push-button; blue HDD LED; lockable power connector; Wall/VESA/DIN-rail mounting options.
  CPU (NF6 / NF2): Celeron Quad Core J1900 2.00 GHz / Atom Dual Core D2550 1.86 GHz.
  Chipset: SoC / NM10 DMI 2.5GT/s.
  GPU embedded: NF6: HD Graphics up to 1920 × 1080 (DVI) and 2560 × 1600 (DVI); NF2: GMA3650 up to 1920 × 1080 (DVI/VGA).
  RAM: NF6: 4GB DDR3L 1066 MHz onboard; NF2: 2GB DDR3 1066 MHz onboard.
  I/O: NF6: 2 x RS232/422/485 DB9; 1 x RS232/422/485 8-bit DIO DB9; 4 x USB 2.0; 1 x USB 3.0; 1 x DVI-I; 4 x GbE RJ45 - Intel I210; 2 x miniPCIe slots (1 x mSATA); 1 x SIM slot; RS485 auto direction control. NF2: 2 x RS232/422/485 DB9; 4 x USB 2.0; 2 x GbE RJ45 - Intel 82574L; 3 x miniPCIe slots (1 x mSATA); 1 x DVI-I; 1 x Line Out / Mic In; 1 x external CFast slot; 1 x SIM slot; RS485 auto direction control.
  Drives: NF6: mSATA/SSD/HDD; NF2: CFast/mSATA.
  Operating Temperature (°C): NF6 & NF2: 0 to +60 (non-condensing).
  Storage Temperature (°C): -20 to +80.
  Humidity: 85% (non-condensing).
  Weight (kg): NF6: 0.8; NF2: 0.7.
  Power supply (Vdc): NF6: 9–36 VDC, max 20W; NF2: 9–26 VDC, max 20W.
  Dimensions (W×H×D) (mm): NF6: 180 × 121 × 33; NF2: 161 × 108 × 32.
  Operating Systems: NF6: WIN7, WES7, WIN8.1, WIN10, Ubuntu 14; NF2: WIN7, WES7, WES2009, Ubuntu 12.
  Protection degree: IP20.
  Certifications: CE, EN61000-6-2 / EN61000-6-4, EAC.
• EW410NF73D000 (EW410NF7): Enclosure: heavy aluminium extrusion chassis; aluminium heat-sink; 1 x power LED; 1 x status LED; lockable power connector; Wall/VESA/DIN-rail mounting options.
  CPU (fanless): Intel Celeron J3455E Quad Core, 2M Cache, 1.5 GHz (burst 2.3 GHz).
  Chipset: SoC.
  Embedded GPU: HDMI up to 3840 × 2160; DP up to 4096 × 2160; VGA up to 1920 × 1200.
  RAM: DDR3L 8GB SO‑DIMM.
  Front I/O: 1 x GbE (RJ45); 2 x RS232/485 (DB9); 1 x VGA; 1 x DP/HDMI combo; Buttons: power, reset; Wi‑Fi antenna holes: 3.
  Rear I/O: 3 x GbE LAN (RJ45); 2 x USB 3.0; 2 x RS232/RS422/RS485 (DB9).
  Drive options: SATA SSD 128GB/256GB/512GB/1TB; HDD 500GB/1TB.
  Operating system: Windows 10 IoT 64-bit LTSC 2019; Linux supported.
  Operating Temperature (°C): -20 to +60.
  Storage Temperature (°C): -40 to +85.
  Humidity: <95% (non-condensing).
  Weight (kg): 0.7.
  Power supply: 9–36 VDC.
  Dimensions (W×H×D): 180 × 33 × 121.2 mm.
  Protection degree: IP30.
  Certifications: CE, EN61000-6-2 / EN61000-6-4, FCC Class A, UL.
