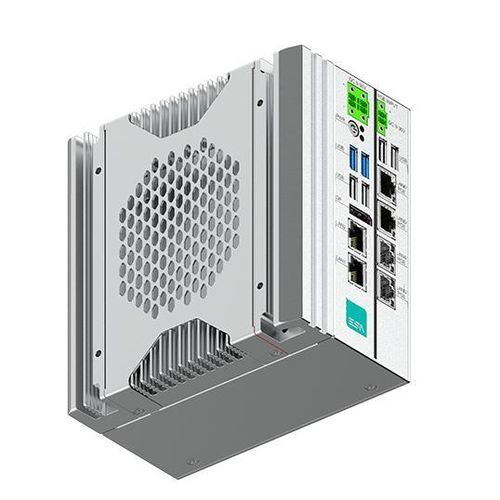

EDGE PC LUMIA

embeddedIntel® Core i3Intel® Core i7

Product overview
Compact industrial IPC LUMIA MINI BOOK equipped with Intel Celeron J6412 or optional 11th‑generation Intel Core i3 / i7 processors. Designed for edge computing and embedded HMI applications, the unit provides integrated Mini‑PCIe expansion for Wi‑Fi, Bluetooth, 4G and GPS and flexible networking with up to 6 Gigabit LAN ports (2 onboard + 4 via expansion module). Preinstalled Kreo Edge and Kreo Connect runtimes enable web‑based visualization, control and remote technical support. Wide 9–36 Vdc input and low power consumption make it suitable for diverse industrial environments.

Key features

• On‑board CPU options: Celeron J6412; Intel Core i3‑1115G4; Intel Core i7‑1165G7
• 1x DDR3 SODIMM socket — up to 4GB (J6412 note: supports up to 32GB; i3/i7 up to 64GB)
• Mass storage: mSATA / SSD options (128GB / 256GB / 512GB / 1TB)
• Networking: 2x Gigabit Ethernet onboard; expandable up to 6x LAN via expansion module
• Expansion: 1x Mini‑PCIe slot for Wi‑Fi / 4G / GPS / Bluetooth
• Audio: onboard HDA ALC662 with MIC / LINE‑OUT and pin header
• USB & serial: 4x USB (2x USB2.0 + 2x USB3.0) and 1x RS232
• Video outputs: HDMI, VGA and 1x DisplayPort (DP)
• Power: wide input 9–36 Vdc; max consumption 25 W
• Environmental ranges suitable for industrial use (typical operating: 0…+50 °C; other referenced ranges: -20…+60 °C; storage up to -40…+85 °C)
• Chassis options: aluminium bezel / steel chassis; preinstalled Kreo Edge and Kreo Connect runtimes

Technical specifications
OS: Windows 10 LTSC 2021 / Windows 11 / Linux
Bezel / Chassis: Aluminium / Steel
Processor: Celeron Quad Core J6412 – 2.0 (2.6) GHz; Intel Core i3‑1115G4 1.7 (4.1) GHz; Intel Core i7‑1165G7 2.8 (4.8) GHz
Chipset: SoC
GPU: J6412 UHD Graphics (10th Gen); i3‑1115 / i7‑1165 UHD Graphics (11th Gen)
RAM: J6412 up to 32GB; i3/i7 up to 64GB (DDR3 SODIMM)
Mass storage: SSD 128GB / 256GB / 512GB / 1TB
Video output: HDMI, VGA, 1xDP (DisplayPort)
Ethernet: 2x Gb (base) + expandable via module (4 LAN + GPIO or 4 LAN PoE + 2 USB)
USB: 2x USB3.0 Type A, 2x USB2.0 Type A
Expansion modules: 4 LAN + GPIO; 4 LAN PoE + 2 USB
Power supply: 9 - 36 Vdc
Consumption: MAX 25 W
Operating temperature: 0 … +50 °C (other ranges quoted: -20 … +60 °C)
Storage temperature: -20 … +60 °C (other notes: -40 … +85 °C)
Humidity: <90% non‑condensing

Applications

• Industrial HMI and operator panels
• Edge computing and data acquisition for machine control
• Network gateway, protocol converter and multi‑LAN routing
• Remote visualization and technical support via Kreo Connect
• Embedded systems in transportation, automation and surveillance
