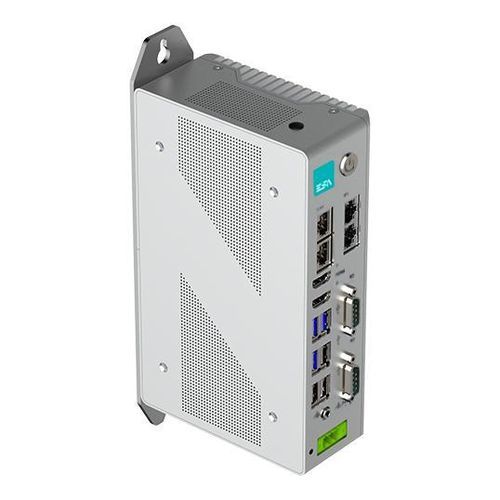

Box PC LUMIA

embeddedwall-mountedDIN rail

Overview
The LUMIA BOOK is a compact fanless Box IPC for industrial automation and embedded HMI applications. It supports Intel Celeron J6412 or optional 11th/12th Gen Intel Core i3 and i7 processors, configurable up to 32 GB DDR4 RAM and 1 TB M.2 NVMe storage. Flexible I/O includes up to 4×1Gb LAN or 2×LAN + CAN and dual video outputs for local visualization. Kreo HMI runtime and Kreo Connect runtime are preinstalled for web-based visualization, control and remote support.

Features

• Operating systems: Windows 10 IoT / Windows 11 / Linux
• Network: 4 integrated 1Gb LAN ports OR 2 LAN + 1 CAN port
• Video: 2×HDMI (or 1×HDMI + 1×DP for Intel Core i3/i7 12th Gen)
• Memory: up to 32 GB DDR4 3200MHz
• Storage: up to 1 TB SSD (M.2 NVMe 2280)
• Security: TPM 2.0
• Front power switch with status light; Audio: Line out + MIC in (2in1 jack)
• Power input: 12–32 V DC; Power consumption: 25 W
• Operating temperature: 1 … +50 °C; Storage: -20 … +65 °C; Humidity <90% (no condensation)
• Chassis: aluminum alloy + steel; Protection: IP20; Installation: wall mount (optional DIN rail)
• Certifications: CE, UL

Technical specifications (summary)

• CPU options: Celeron J6412; Intel Core i3-1115G4; Intel Core i7-1165G7; Intel Core i3-1215U; Intel Core i7-1255U
• Memory options: 4 / 8 / 16 / 32 GB DDR4 3200MHz
• Storage options: 128 / 256 / 512 GB / 1 TB SSD (M.2 NVMe 2280)
• Ethernet: J6412: 4×1Gb LAN; i3/i7: 3×Gb LAN chip (selectable up to 4 ports)
• USB: J6412: 3×USB3.0 + 3×USB2.0; i3/i7: 6×USB3.0 Type A
• Video outputs: 2×HDMI or 1×HDMI + 1×DP (available for i3/i7 12th Gen)
• Dimensions (W×H×L): 59.8 × 200 × 119.5 mm; Weight: 2 kg

Product family

• Product family: LUMIA BOOK (fanless Box IPC)
• Typical use cases: industrial HMI, edge computing, machine control
• Mounting: wall mount; optional DIN rail adapter available
