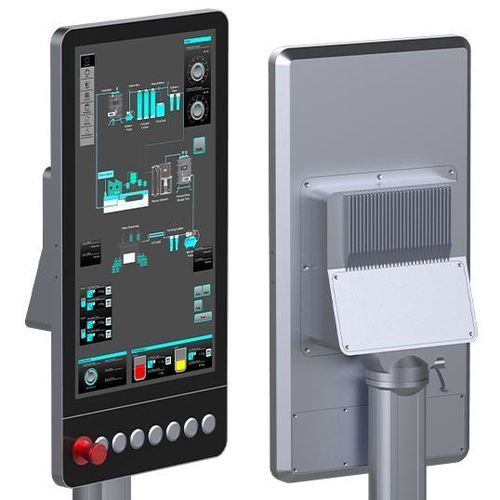

Touch screen panel PC Lumia

TFT LCDcapacitive touch screenLED backlight

Product overview
Range of industrial arm-mount PCs for console and control-station integration. Fanless processor options minimize dust intake and maintenance. Configurable arm and optional control panel adapt to installation needs. Multiple handle configurations and optional keyboard support with or without mouse pad complete the workstation. Up to 4 independent LAN ports allow separation of OT (machine) and IT (customer) networks.

Features

• Operating system: Windows 10 / Windows 11 / Linux (Win10 IoT LTSC 2019/2021 compatible)
• Displays: 15.6”, 21.5” (landscape & portrait for 15.6”/21.5”), 27” — Full HD 1920×1080, 16:9
• Front: full glass true-flat with capacitive touch
• Arm mounting with IP65-rated arm components; overall product protection up to IP66
• Processor options: Intel Celeron J6412; Intel Core i3-1115G4; Intel Core i7-1165G7
• GPU: UHD Graphics variants depending on CPU (J6412 / i3 / i7)
• Network: up to 4 independent LAN ports (OT/IT separation)
• Ports: 1× RS232 COM; up to 6× USB 3.2 (mix of USB2.0/USB3.0 depending on CPU); 2× HDMI
• Expansion: up to 10 hard-wired slots for controls, pilot lamps, selectors, emergency stop
• Power: 12–32 V DC; typical consumption ~35 W (15.6”), ~50 W (21.5”/27”)

Technical specifications
Model: ARM IPC Lumia
O.S.: Win10 IoT LTSC 2019/2021 / W11 / Linux
Display sizes: 15.6” (1920×1080), 21.5” (1920×1080), 27” (1920×1080)
Display tech / backlight / colors: TFT / LED / 16M
Touch: Capacitive full-glass true flat
Bezel / chassis: Aluminium
Processors: Celeron J6412 (2.0/2.6 GHz), Intel Core i3-1115G4 (1.7/4.1 GHz), Intel Core i7-1165G7 (2.8/4.8 GHz)
Chipset: SoC
GPU: J6412 UHD / i3-i7 UHD Graphics (11th Gen for i3/i7)
Video output: 2× HDMI
RAM: 8 GB up to 32 GB (depending on CPU)
Storage: 256 GB / 512 GB / 1 TB SSD options
Ethernet: J6412: 2× 1 Gbps (Intel 225-V); i3/i7: 2× Intel GBE LAN; configurable up to 4 independent LAN ports
COM: 1× RS232
USB: J6412: 3× USB2.0 + 3× USB3.0; i3/i7: 6× USB3.0
Power input: 12–32 V DC
Power consumption: 35 W (15.6”); 50 W (21.5”, 27”)
Operating temperature: 0…+50 °C
Storage temperature: -20…+60 °C
Humidity: <90% non-condensing
Dimensions (W×H×D mm): 15.6” 389.4×328.3×127.0; 21.5” L: 527.8×405.1×127.0; 21.5” P: 319.0×626.2×127.0; 27” 645.4×469.3×127.0
Weight: 15.6” 6.5 kg; 21.5” 8 kg; 27” 10 kg
Protection rating: IP66 (overall), arm mounting components rated IP65
Mounting & accessories: configurable arm, U-handle (for 15.6”), single handle left/right/bottom, keyboard support with/without mouse pad
