TFT monitor Lumia

projected capacitive touchscreenmultitouch screencapacitive touch screen

Overview

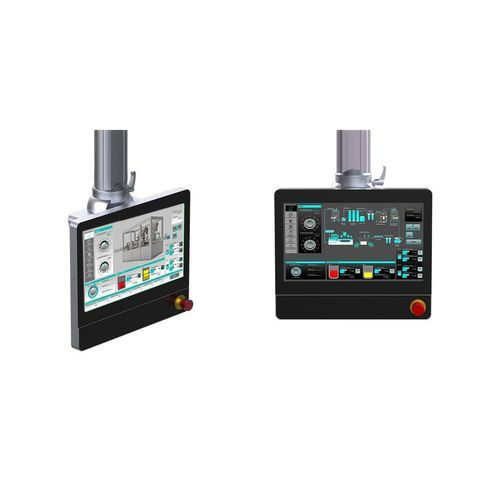

The Lumia arm-mounted industrial monitors provide a compact, arm-installable display solution for operator pulpits and control stations. Available in 15.6, 21.5 and 27 in 16:9 Full HD TFT panels, the family supports multipoint capacitive touch (rear USB-B) and multiple video inputs for compatibility with modern industrial PCs.

Key features

• High-resolution 16:9 Full HD displays in three sizes: 15.6 in (1920×1080), 21.5 in (1920×1080), 27 in (1920×1080)
• 15.6 in version supports both landscape and portrait installation
• Full-glass true-flat front with multipoint capacitive touch
• IP66 protection rating all around for the complete assembly
• User-configurable arm system with a comprehensive catalogue of components
• Up to 12 hard-wired slots for controls, indicators, selectors and emergency pushbutton
• Handle options to facilitate rotation; U-handle available for 15.6 in
• Single handle can be positioned on left, right or bottom side
• Optional keyboard support with or without integrated mouse pad as alternative to U-handle

Technical specifications

• Display technology: TFT
• Available display sizes: 15.6 in (1920×1080), 21.5 in (1920×1080), 27 in (1920×1080)
• Aspect ratio: 16:9
• Backlight: LED
• Colors: 16M
• Touch: Multipoint capacitive (rear USB-B connection)
• Bezel / chassis: Aluminium
• Video inputs: DVI-D, VGA, DisplayPort (DP)
• USB: Rear 1× USB Type-B (touch)
• Power supply: 12–32 V DC
• Power consumption: 35 W (15.6 in), 50 W (21.5 in), 50 W (27 in)
• Operating temperature: 0 … +50 °C
• Storage temperature: -20 … +60 °C
• Humidity: <90% (non condensing)
• External dimensions (W×H×D, mm): 15.6 in = 389.40 × 328.30 × 126.99; 21.5 in = 527.84 × 405.10 × 126.99; 27 in = 645.40 × 469.25 × 126.99
• Weights: 15.6 in = 6.5 kg; 21.5 in ≈ 8 kg; 27 in ≈ 10 kg
• Protection degree: IP66 all around

Mounting and options

• Arm installation with configurable components to fit control stations and pulpits
• Rich catalogue of handles, keyboard supports and mounting accessories
• Configurations include up to 12 hard-wired control slots and emergency pushbutton integration
• Handle and keyboard positions can be customized (left, right, bottom)
• Rear USB-B connection for touch, separate video inputs for display
