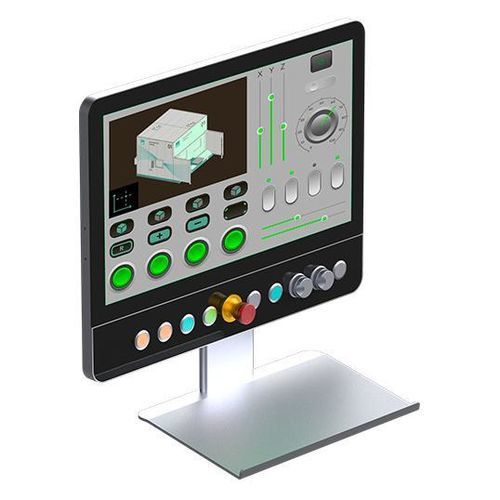

Multitouch screen HMI Lumia capacitive touch screenarm-mounted1920 x 1080
Add to favorites
Compare this product
Characteristics
- Interface
- multitouch screen, capacitive touch screen
- Mounting
- arm-mounted
- Resolution
- 1920 x 1080
- Processor
- Rockchip RK3399 SoC
- Screen type
- TFT LCD, LED
- Operating system
- Debian 11
- Protection level
- IP66
- Connectivity
- WiFi, LAN, USB, USB 3.0, 2.4/5 GHz, Ethernet, USB 2.0
- Other characteristics
- widescreen, fanless, waterproof front panel, HD display
- Applications
- operator interface
- Screen size
Max.: 68.6 cm
(27 in)Min.: 39.6 cm
(15.6 in)
Description
Overview
The Lumia ARM Web HMI range provides supervision and remote-control panels designed for arm mounting on consoles and operator stations. Powered by Rockchip multicore processors and running fanless Linux Debian 11 with Chromium, these webHMIs deliver reliable web-server compatibility and industrial-grade networking with physical OT/IT separation. Protection is IP66 all around; arm installation rated IP65.
Key features
Additional features
Technical specifications
The Lumia ARM Web HMI range provides supervision and remote-control panels designed for arm mounting on consoles and operator stations. Powered by Rockchip multicore processors and running fanless Linux Debian 11 with Chromium, these webHMIs deliver reliable web-server compatibility and industrial-grade networking with physical OT/IT separation. Protection is IP66 all around; arm installation rated IP65.
Key features
- Linux Debian 11 operating system with Chromium 114
- Rockchip RK3399 multicore processor (Dual-core Cortex‑A72 + Quad‑core Cortex‑A53)
- Widescreen 16:9 TFT LED displays in 15.6", 21.5" and 27" (1920×1080)
- Full-glass true flat front with capacitive multi-touch (15.6" supports portrait and landscape)
- Arm mounting system for console integration
- Protection: IP66 (all around); arm-mounted product rated IP65
Additional features
- 2 independent LAN ports for OT/IT separation (1×1 Gbps + 1×100 Mbps)
- 2 USB ports (1×USB 2.0, 1×USB 3.0)
- Wi‑Fi client mode 2.5 / 5 GHz
- User‑configurable arm with catalogue components and up to 10 hardwired slots for controls, lamps, selectors and emergency pushbutton
Technical specifications
- O.S.: Linux Debian 11 + Chromium 114
- Processor: RK3399 (Dual‑core Cortex‑A72 + Quad‑core Cortex‑A53)
- RAM: 2 GB DDR4
- Mass storage: 16 GB eMMC
- Display sizes: 15.6" / 21.5" / 27" — 1920×1080, 16:9, TFT LED, 16M colours
- Touch: Capacitive multi‑touch (15.6" supports portrait & landscape)
- Chassis: Aluminium bezel, full-glass true flat front
- Ethernet: 1×1 Gbps + 1×100 Mbps (independent)
- USB: 1×USB 2.0 + 1×USB 3.0
- Wireless: Wi‑Fi 2.5 / 5 GHz (client mode)
- Power supply: 12–32 V DC
- Power consumption: 18 W (15.6"); 28 W (21.5" and 27")
- Operating temperature: 0 … +50 °C; Storage: -20 … +60 °C; Humidity <90% non‑condensing
- Dimensions (W×H×D, mm): 15.6" 389.40×328.30×126.99; 21.5" 527.84×405.10×126.99; 27" 645.40×469.25×126.99
- Weight: 15.6" 6.5 kg; 21.5" 8 kg; 27" 10 kg
- Protection: IP66 all around; arm installation with IP65 rating
