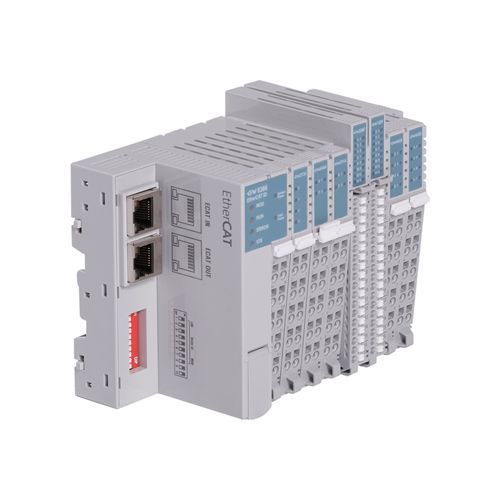

Digital I/O module EW62 series

analogEtherNet/IPModbus TCP

Product overview
High connectivity, openness and configurability. The new generation of ESA I/Os is engineered to promote efficiency and digitization in accordance with Industry 4.0 and IoT. The ideal solution for distributed control of device signals in the field.

Features

• Compatibility with different fieldbuses thanks to the modularity of the couplers.
• Modules of digital inputs or outputs up to 32 points.
• Analog modules inputs or outputs up to 16 channels and 16 Bits resolution.
• Special modules such as encoder input, thermocouples, synchronous serial input.
• Remove Terminal Block (RTB).
• Module locking system on DIN rail easily accessible.
• Seal ring for cables fixing.
• Compact dimensions and compatibility with the various I/O systems on the market to facilitate integration in existing applications.

Fieldbus and environmental data

• Standard field bus: EtherCAT or CANOpen.
• Optional field buses: modBUS, ProfiNET, EthernetIP.
• Operating temperature: -20 ~ +60 °C.
• Internal BUS times: <1ms (128Bytes), 2ms (256Bytes), 4ms (512Bytes).
• Number of maximum modules per coupler: 63.
• Protection degree: IP20.
• Certification: CE.

EW620 Coupler module - available variants
EW62N9261 | CANopen, Network Adapter
EW62N9386 | EtherCAT, Network Adapter
EW62N9273 | MODBUS RS485, Network Adapter
EW62L9086 | EtherCAT, Network Adapter, Light version
EW62L9087 | PROFINET IO, Network Adapter, Light version
EW62L9089 | MODBUS TCP/UDP, Network Adapter, Light version
EW62N9289 | MODBUS TCP/UDP Network Adapter
EW62N9481 | EtherCAT, Network Adapter, Programmable I/O

EW620 Digital module - Input
EW62T12DF | 16 POINTS, UNIVERSAL 24VDC, 18RTB
EW62T12FA | 32 POINTS, UNIVERSAL 24VDC, 40P CONNECTOR
EW62T123F | 16 POINTS, UNIVERSAL 24VDC, 20P CONNECTOR
EW62T1238 | 8 POINTS, UNIVERSAL (SINK OR SOURCE), 24VDC, 10RTB
EW62T1904 | 4 POINTS, 240VAC, 10RTB

EW620 Digital module - Output
EW62T22CA | 32 POINTS, SOURCE, 24VDC/0.3A, 40P CONNECTOR
EW62T225F | 16 POINTS, SINK, 24VDC/0.3A, 18RTB
EW62T226F | 16 POINTS, SOURCE, 24VDC/0.3A, 18RTB
EW62T227F | 16 POINTS, SINK, 24VDC/0.3A, 18RTB
EW62T228F | 16 POINTS, SOURCE, 24VDC/0.3A, 18RTB
EW62T2318 | 8 POINTS, SINK, 24VDC/0.5A, 10RTB
EW62T2328 | 8 POINTS, SOURCE, 24VDC/0.5A, 10RTB
EW62T2338 | 8 POINTS, SINK, 24VDC/0.5A, 10RTB
EW62T2348 | 8 POINTS, SOURCE, 24VDC/0.5A, 10RTB
EW62T2628 | 8 POINTS, SOURCE, 24VDC/2A, 10RTB
EW62T2734 | 4 POINTS, MOS RELAY, 240VDC/AC, 0.5A, 10RTB
EW62T2744 | 4 POINTS, RELAY OUTPUT, 24VDC/240VAC, 2A, 10RTB
EW62T2764 | 4 POINTS, MOS RELAY 24VDC/AC, 2A, 10RTB

EW620 Analogue module - Input
EW62T3114 | 4 Channels, 0-20/4-20 mA, 12bits, 10RTB
EW62T3118 | 8 Channels, 0-20/4-20 mA, 12bits, 10RTB
EW62T3154 | 4 Channels, 0-20/4-20 mA, 16bits, 10RTB
EW62T3158 | 8 Channels, 0-20/4-20 mA, 16bits, 10RTB
EW62T3424 | 4 Channels, 0..10/0..5/1..5 Vdc, 12bits, 10RTB
EW62T3428 | 8 Channels, 0..10/0..5/1..5 Vdc, 12bits, 10RTB
EW62T3464 | 4 Channels, 0..10/0..5/1..5 Vdc, 16bits, 10RTB
EW62T3468 | 8 Channels, 0..10/0..5/1..5 Vdc, 16bits, 10RTB
EW62T3704 | 4 Channels, RTD / Resistance Input, 10RTB
EW62T3804 | 4 Channels, Thermocouple K/J/T/B/R/S/E/N/L/U/C/D type, 10RTB
EW62T3808 | 8 Channels, Thermocouple K/J/T/B/R/S/E/N/L/U/C/D type, 20P Connector
EW62T3914 | 4 Channels, Differential 0-20/4-20/±20 mA, 12bits, 10RTB
EW62T3924 | 4 Channels, Differential 0..10/0..5/±5/±10 Vdc, 12bits, 10RTB
EW62T3934 | 4 Channels, Differential 0-20/4-20/±20 mA, 16bits, 10RTB
EW62T3944 | 4 Channels, Differential 0..10/0..5/±5/±10 Vdc, 16bits, 10RTB

EW620 Analogue module - Output
EW62T4114 | 4 Channels, 0-20 mA, 12bits, 10RTB
EW62T4118 | 8 Channels, 0-20 mA, 12bits, 10RTB
EW62T4154 | 4 Channels, 0-20 mA, 16bits, 10RTB
EW62T4158 | 8 Channels, 0-20 mA, 16bits, 10RTB
EW62T4424 | 4 Channels, 0-10 Vdc, 12bits, 10RTB
EW62T4428 | 8 Channels, 0-10 Vdc, 12bits, 10RTB
EW62T4464 | 4 Channels, 0-10 Vdc, 16bits, 10RTB
EW62T4468 | 8 Channels, 0-10 Vdc, 16bits, 10RTB

EW620 Special module
EW62T5102 | 2 Channels, High Speed Counter / Encoder Input, 5Vdc, 10RTB
EW62T5212 | 2 Channels, High Speed Counter / Encoder Input, 24Vdc, 10RTB
EW62T5232 | 2 Channels, Serial Interface RS232, Full Duplex, 10RTB
EW62T5352 | 2 Channels, Syncronous Serial Interface Module
EW62T5112 | 2 Channels, Encoder Module, Input 24VDC, Output 5VDC, 10RTB
EW62T5521 | 2-Phase Bipolar Stepping Motor Driver, 24Vdc/1A, 10RTB

EW620 Optional module
EW62T7408 | 8 Channels, Potential Distributor Shield, 10 RTB
EW62T7511 | Expansion System/Field Power, Input 24Vdc, Output 5Vdc/1A, 10 RTB
EW62T7518 | 10 Channels, Potential Distributor 24Vdc, 10 RTB
EW62T7588 | Potential Distributor, 5 Channels 24Vdc / 5 Channels 0Vdc, 10 RTB
EW62T7641 | Field Power Distribution 24Vdc, 10 RTB

Caractéristiques / spécifications techniques

• Series / model: EW620
• Fieldbus compatibility: EtherCAT, CANOpen (standard); ModBUS, PROFINET, EthernetIP (optional).
• Digital I/O modularity: digital modules up to 32 points per module.
• Analog I/O: up to 16 channels, resolutions up to 16 bits depending on module.
• Special functions: encoder input, thermocouple input, synchronous serial interfaces, high speed counters, motor driver modules.
• Removable Terminal Blocks (RTB) available on many modules.
• Module locking on DIN rail; seal ring for cable fixing.
• Internal BUS performance: sub-1ms to 4ms depending on payload (128/256/512 Bytes).
• Max modules per coupler: 63.
• Operating temperature: -20 °C to +60 °C.
• Protection class: IP20.
• Certification: CE.
