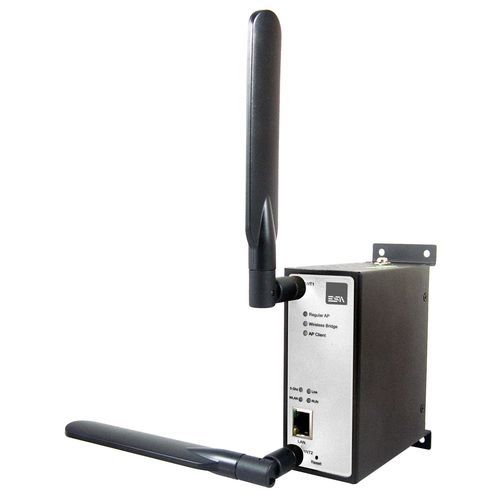

WiFi access point HIDRAWIFI000000

IPWLANgigabit Ethernet

Product overview
ESA industrial wireless access points provide reliable, cost‑effective Wi‑Fi connectivity for industrial environments. The HIDRAWIFI000000 is a dual‑band (2.4/5 GHz) industrial access point with 2x2 MIMO, designed for DIN‑rail or wall mounting and extended operating temperature.

Key features

• Dual‑band operation (2.4 GHz & 5 GHz) with 2x2 MIMO (Atheros AR9382)
• Configuration via webserver and management utility; 5 GHz support to reduce 2.4 GHz interference
• Client isolation, VLAN segmentation, firewall/filtering and standard wireless security (WEP/WPA/WPA2, TKIP/AES, 802.1x)
• Multiple operation modes: AP, WDS Hybrid, AP Client
• Industrial design: IP30 protection, DIN‑rail or wall mounting, operating temperature −10°C to 60°C
• Wide power input: 9–48 VDC with reverse polarity protection; power consumption approx. 5.85 W

Technical specifications

• Model: HIDRAWIFI000000
• Ethernet: RJ45, IEEE802.3u/ab, 10/100/1000 Mbps
• Power input: 9 VDC–48 VDC; connector: pin lockable terminal block; reverse polarity protection
• Protection rating: IP30; Dimensions (W×H×D): 47 × 110 × 90 mm; Weight: 500 g
• Wireless module: Atheros AR9382; Tx/Rx: 2T2R MIMO; Standards: 802.11a/b/g/n
• Antenna: 2.4 GHz gain 3 dBi (SMA female); 5 GHz gain 5 dBi (dual SMA female)
• Buttons: Reset; WPS / Wi‑Fi Direct
• Operating temperature: −10°C to 60°C; Storage: −40°C to 85°C; Humidity: 5–95% RH (non‑condensing)
• MTBF: 15 years (MIL‑HDBK‑217F)

Compliance & certifications

• EMC/EMF and safety: EN55032, EN55024, EN 301489 series, EN 62311, EN 50385, UL60950‑1/CB, EN60950‑1, IEC/EN 62368‑1
• Radio approvals: FCC 15C/15E, EN 301893, EN 300328, NCC
• Supported protocols and alerts: ICMP, TCP, UDP, DHCP, DNS, SNMP, NTP, SMTP, HTTP, IPv4, 802.1x, RADIUS, STP, WPS, Syslog; Alerts: E‑mail / SNMP Trap
