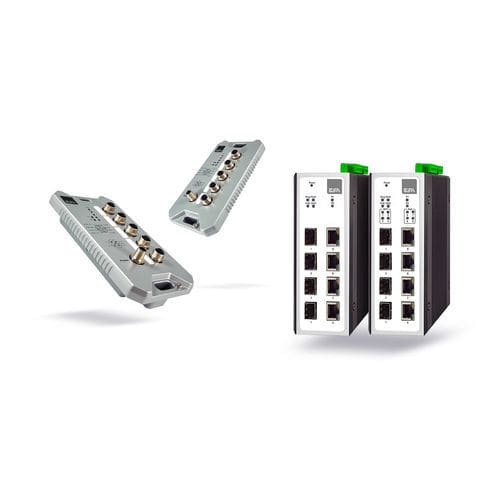

Managed switch HIDRA series

unmanaged5 ports8 ports

Overview
HIDRA SWITCH is a family of industrial unmanaged and managed Layer 2 Ethernet switches designed for DIN‑rail mounting in harsh environments. Models offer 5 or 8 RJ45 Gigabit ports, wide operating temperatures, redundant power options on selected units and extensive Layer 2 management for industrial networks.

Features

• 10/100/1000 Mbps RJ45 ports (Gigabit)
• Redundant DC power input and reverse polarity protection
• DIN‑Rail slim metal housing, IP30 protection
• Wide operating temperature range (models: -40°C to 70°C)
• Support for VLAN, QoS, STP/RSTP/MSTP and advanced Layer 2 functions

• Industrial protocol support: Modbus/TCP, Profinet, Ethernet/IP
• Certifications (model dependent): CE, UL, FCC, ATEX Zone 2, EN50155
• IEC62443 compliant cybersecurity features
• Available unmanaged and managed variants

Unmanaged models

• HIDRA05UG50000X – 5 x RJ45 ports, 10/100/1000 Mbps, no PoE, SECC housing
• HIDRA08UG80000X – 8 x RJ45 ports, 10/100/1000 Mbps, no PoE, aluminium housing, redundancy supported

Power (Unmanaged)

• HIDRA05UG50000X: Input 12–52 VDC, consumption ~6 W, terminal block power connector, reverse polarity protection
• HIDRA08UG80000X: Input 9–48 VDC, consumption ~4.05 W, 5.08 mm 5‑pin terminal block, redundancy supported, reverse polarity protection

Physical (Unmanaged)

• HIDRA05UG50000X: SECC housing, IP30, DIN‑Rail, 32 x 90 x 110 mm, 420 g, LEDs: PWR1/PWR2/Alarm/RJ45 Act‑Link
• HIDRA08UG80000X: Aluminium housing, IP30, DIN‑Rail, 45.2 x 90 x 78 mm, 255 g, LEDs: PWR1/PWR2

Environmental (Unmanaged)

• Operating temperature: HIDRA05UG50000X -40°C to 70°C; HIDRA08UG80000X -10°C to 70°C
• Storage temperature: -40°C to 85°C
• Humidity: 5%–95% non‑condensing (up to 55°C)

Safety / Certifications (Unmanaged)

• HIDRA05UG50000X: UL 61010‑2‑201, UL C1D2; ATEX Zone 2; EN50155 / EN50121‑4 (rail variants)
• HIDRA08UG80000X: UL60950‑1 / CSA / CB (IEC62368‑1); FCC Part 15 Class A; EN 55032/EN 61000 standards; RoHS compliant

Managed models

• HIDRA08MG80000X – 8 x RJ45 Gigabit ports, no SFP, RS232 console (RJ45), 2 relay outputs, DIP switches for ring control, reset button

Technology / Protocols (Managed)

• Standards: IEEE 802.3 / 802.3u / 802.3ab / 802.3z
• Layer 2 control: IEEE802.3x flow control, 802.1D/802.1w/802.1Q/802.1p, 802.1X, LACP
• Protocols & services: IPv4/IPv6, IGMP v1/2/3, SNMP v1/v2c/v3, SSH/Telnet, DHCP client/relay, HTTP, Syslog, NTP, RMON, LLDP, IEEE1588 PTP, Profinet, Modbus/TCP and numerous security features (ACL, DHCP snooping, IP source guard)

Switch Properties (Managed)

• Priority queues: 8
• Max VLANs: 256 (VID 1–4094)
• MAC table: 16K entries
• Packet buffer: 12 Mbit

Power (Managed)

• Input voltage: 9–48 VDC; input current example 3.0 A @24 V
• Power connector: Removable 5‑pin terminal block; redundancy and reverse polarity protection supported

Physical (Managed)

• Metal housing, IP30, DIN‑Rail installation
• Dimensions: 60.3 x 137.9 x 164 mm; Weight: 1200 g
• LEDs: PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ‑45 Link/Speed

Environmental (Managed)

• Operating temperature: 20°C to 70°C
• Storage temperature: -40°C to 85°C
• Humidity: 5%–95% non‑condensing (up to 55°C)

Certifications / Safety (Managed)

• Safety: UL60950‑1 / CSA / CB (IEC/EN62368‑1 & IEC/EN60950‑1)
• EMC: FCC Part 15 Class A; EN 61000‑6‑4 / EN 61000‑6‑2; IEC 61000‑4‑x series tests; RoHS compliant

Technical specifications

• Product family: HIDRA SWITCH – industrial unmanaged and managed Layer 2 switches
• Ports: 5 or 8 x RJ45 depending on model; Gigabit speed on RJ45
• PoE: not supported on listed models
• Power ranges: 12–52 VDC (HIDRA05UG50000X); 9–48 VDC (HIDRA08UG80000X / HIDRA08MG80000X)
• Mounting: DIN‑Rail; Protection: IP30; Housings: SECC / aluminium / metal
• Operating temp: model dependent, up to -40°C to 70°C; Storage: -40°C to 85°C
• Standards: IEEE 802.x series, VLAN, flow control; Certifications: CE/EMC, UL, FCC, ATEX (model dependent); RoHS
• Advanced managed features: VLAN, STP/RSTP/MSTP, QoS, ACL, SNMP v1/v2c/v3, IPv6, LLDP, IEEE1588 PTP, 802.1X, Profinet/Modbus/TCP support
