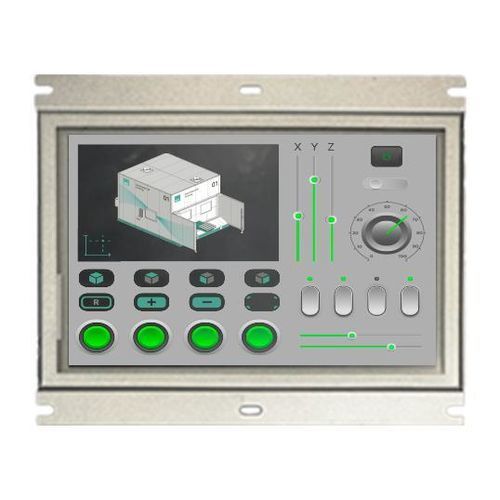

LCD monitor TFTLED backlightindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, TFT, LED backlight
- Applications
- industrial, for HMI interface
- Display size
- 32"
- Resolution
- 1920 x 1080
- Mounting
- VESA mounting, wall-mount, desktop, open-frame, for integration
- Other characteristics
- HDMI, VGA, widescreen, IP20
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Product
Open-frame industrial monitor designed for integration into customer cabinetry and control panels. The electronic board is mounted directly on the rear of the LCD and fixed inside the mechanical frame. The open-frame (no external housing) format enables quick, space-efficient integration; the absence of a touchscreen simplifies use with external pointing systems and dedicated operator interfaces.
Technical specifications
Open-frame industrial monitor designed for integration into customer cabinetry and control panels. The electronic board is mounted directly on the rear of the LCD and fixed inside the mechanical frame. The open-frame (no external housing) format enables quick, space-efficient integration; the absence of a touchscreen simplifies use with external pointing systems and dedicated operator interfaces.
Technical specifications
- Display size: 32"
- Resolution: 1920x1080
- Format: 16:9
- Brightness (cd/㎡): 200
- KVM-Receiver integrated: no
- Protection: IP20
- LCD: TFT
- Back light: LED (S0000hours)
- Colors: 16M
- Touch screen: no
- Front USB: no
- Rear USB: no
- Video input: 1xHDMI, 1xVGA
- Power (VDC): 12V DC jack, power adapter
- Operation Temp. (°C): -10 ... +60 °C
- Storage Temp. (°C): -20 ... +70 °C
- Humidity: 20%~<90% (non-condensing)
- Case material: SPCC
- Installation: cut-out, wall, desk, VESA
- External size: 770.7x465.6x60mm
- Display active area: 698.7x393.16mm
- Cut-out size: 765.3x460.2mm
- Consumption (W): 15W
- Net Weight (Kg): 12.9
- Certification: CE
