Capacitive touch screen HMI

open frame1024 x 600ARM® Cortex®-A55 Quad-core

Product overview

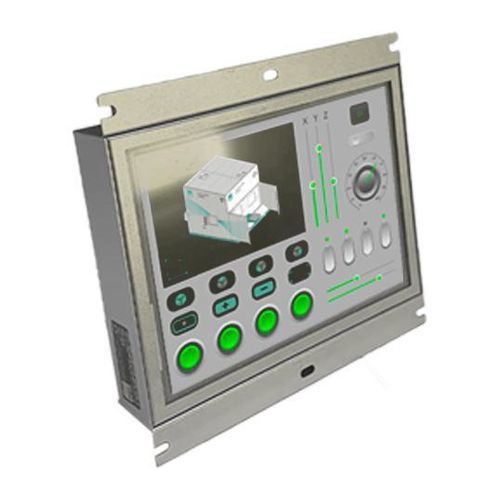

Embedded Web HMI in an open-frame configuration for panel integration and OEM applications. Electronics are mounted directly on the back of the 7" TFT display (1024 x 600) and fixed within the mechanical frame to facilitate integration into existing enclosures and control panels. System runs Linux Debian 11 with Kreo HMI Control panel and Chromium for application display.

Key features

• Display: 7" TFT, 1024 x 600, 16M colors, LED backlight
• Touch: Capacitive touchscreen
• Processor: RK35568 (Quad-core Cortex-A55)
• Memory & storage: 4GB DDR4 RAM, 16GB eMMC
• Connectivity: 1×1Gb + 1×100Mb Ethernet, Wi‑Fi 2.4/5 GHz (client), 1x RS232/RS485, 1x USB3.0 + 1x USB2.0
• Power: 12–32 V DC, typical consumption 10 W
• Bezel / Chassis: Aluminium; open-frame format for panel mounting
• Operating conditions: 0 … +50 °C; storage -20 … +60 °C; humidity <90% non‑condensing

Applications
Designed for industrial automation, machine control panels, operator interfaces and OEM integration where a compact open-frame Web HMI is required. Suitable for retrofit and custom enclosures.

Installation & maintenance

• Open-frame design enables easy installation into existing panels or custom bezels
• Electronic board fixed to rear of LCD for compact footprint
• Low power consumption and standard industrial operating range simplify integration
• Software stack based on Linux Debian 11 with Chromium and Kreo HMI Control panel for quick deployment

Technical specifications

• O.S.: Linux Debian 11
• Kreo HMI Control panel
• Application software: Chromium
• Display Size: 7" (1024 x 600)
• Display technology: TFT
• Display Backlight: LED
• Display Colors: 16M
• Touch Technology: Capacitive
• Bezel / Chassis: Aluminium
• Processor: RK35568 (Quad-core Cortex-A55)
• RAM: 4GB DDR4
• Mass storage: 16GB eMMC
• Ethernet Port: 1×1Gb + 1×100Mb
• WiFi: 2.4 / 5 GHz support (client mode)
• COM Port: 1× RS232/RS485
• USB Port: 1× USB3.0 + 1× USB2.0
• Power Supply (Vdc): 12–32 V DC
• Consumption (W): 10 W
• Operating Temperature (°C): 0 … +50 °C
• Storage Temperature (°C): -20 … +60 °C
• Humidity: <90% (non condensing)
• External dimensions (W/H/D) (mm): 200 x 110 x 28.35
• Weight (kg): 2 kg
