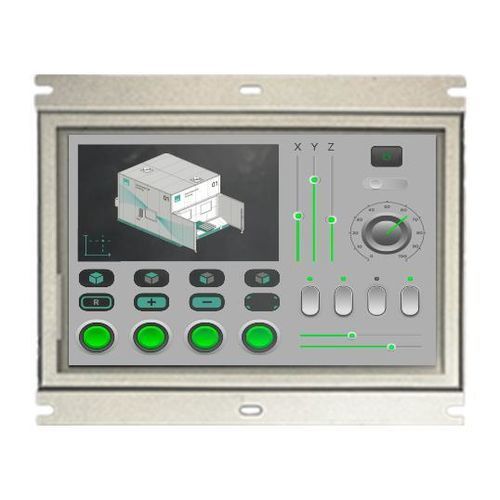

Resistive touch screen panel PC EW208

8"800 x 600Intel® Celeron J1900

Overview
The EW208 open frame industrial PC is designed for integration into custom enclosures and existing control cabinets, providing a compact 8-inch display with board-mounted electronics for simplified installation.

Key features

• Open frame design: no external housing for direct integration into customer carpentry.
• Board-mounted electronics: main board fixed to the back of the LCD for compact footprint.
• Quick installation: front-side integration system for fast mounting in panels or kiosks.
• Passive cooling: fanless operation suitable for low-noise and dust-sensitive environments.
• Touch functionality: 4-wire resistive touchscreen, supports gloves and active pen.

Technical specifications

• Model: EW208 (Open Frame 8")
• CPU: Intel J1900, 2 GHz
• Cooling: passive (fanless)
• RAM: 8 GB DDR3
• Storage: 64 GB SSD
• USB: 2 × USB 3.0, 2 × USB 2.0
• COM: 1 × RS232/485/422, 1 × RS232
• Ethernet: 2 × Intel I211 10/100/1000 Mbps
• Power input: 9–36 VDC
• Mainboard power consumption: 20 W
• Display resolution: 800 × 600
• Display brightness: 400 nits
• Contrast ratio: not specified on source (page artifact)
• Display power: 8 W
• Idle/display power: 0.5 W
• Touchscreen: 4-wire resistive, single touch; tempered glass thickness 2 mm; supports touch with gloves and active pen
• Operating systems: Windows 10/11, Linux
• Operating temperature: -10 °C to 60 °C
• Environment: suitable for indoor and outdoor use
• Sealing: surface IP50
• Material/finish: aluminum with oxidation sand-blasting plus high-additive sheet metal
• Installation: open frame installation
• Certifications: CE

Applications

• Human–machine interfaces (HMI) and operator panels integrated into machine frames.
• Industrial kiosks, control cabinets and embedded display systems requiring custom housing.
• Field equipment where passive cooling and glove-capable touch are required.

Compliance & environment

• CE certification.
• Operational range suitable for indoor and sheltered outdoor environments; check enclosure sealing for full outdoor exposure.
• IP50 surface sealing—verify customer-specific sealing needs when integrating into external housings.
